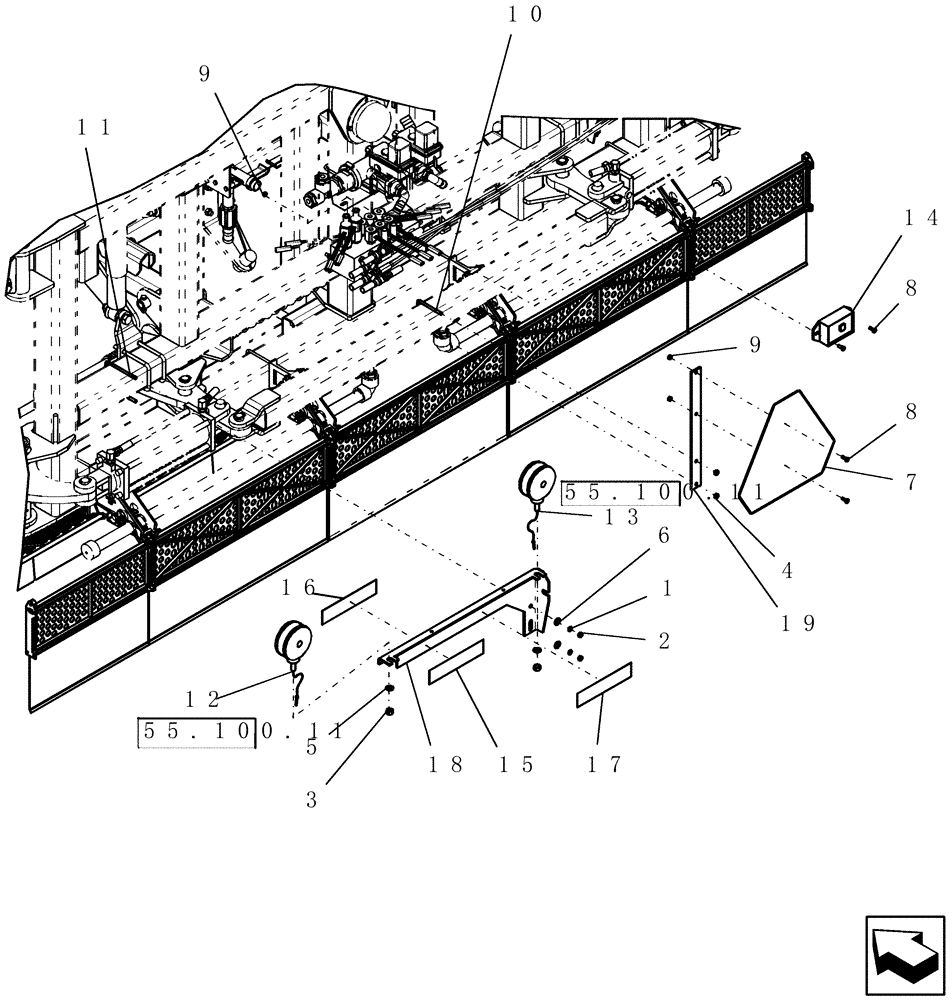

Запчасти Case IH 160 (90.108.01) - SAFETY - SMV SIGN, LIGHTING AND REFLECTOR DECALS - SUSPENDED BOOM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

80681

LOCK WASHER,5/16"

20шт.

2

9635082

NUT,5/16" - 18, Gr 5

20шт.

3

280431

NUT,1/2"-13, G5

4шт.

4

280736

NUT,5/16"-18, GC

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

7

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

280129

NUT,1/4"-20

10шт.

10

7611

U-BOLT

us 5/16" x 3 1/16" w x 3 3/4" d 1" thread

1шт.

11

8474

U-BOLT

us 5/16" x 3 1/16" w x 4 3/4" d 1" thread

3шт.

12

87564157

WARNING LIGHT

assembly amber

2шт.

Refer to 55.100.11

1шт.

13

51200040

LIGHT

assy. stop tail/signal red

2шт.

Refer to 55.100.11

1шт.

Includes 6815 and 86537133

1шт.

13

6815

LENS

red

2шт.

13

86537133

BULB,C6, #1157, 12.8V

2шт.

13

84129422

BULB

Double Contact, 1156DC

2шт.

14

86561136

MODULE

implement lighting control

1шт.

15

22902

DECAL

retroreflective red 2" x 9"

2шт.

16

22903

DECAL

retroreflective amber 2" x 9"

2шт.

17

51200094

DECAL

fluorescent red orange

2шт.

18

87415735

BRACKET

amber light mount #2

1шт.

Includes 22902, 22903, 23514

1шт.

18

87414985

BRACKET

amber light mount #1

1шт.

Includes 22902, 22903, 23514

1шт.

19

87502083

BRACKET

smv sign

1шт.
