(88.100.06[01]) - OPTION - LINE STRAINERS

Запчасти Case IH 160 (88.100.06[01]) - OPTION - LINE STRAINERS (88) - ACCESSORIES

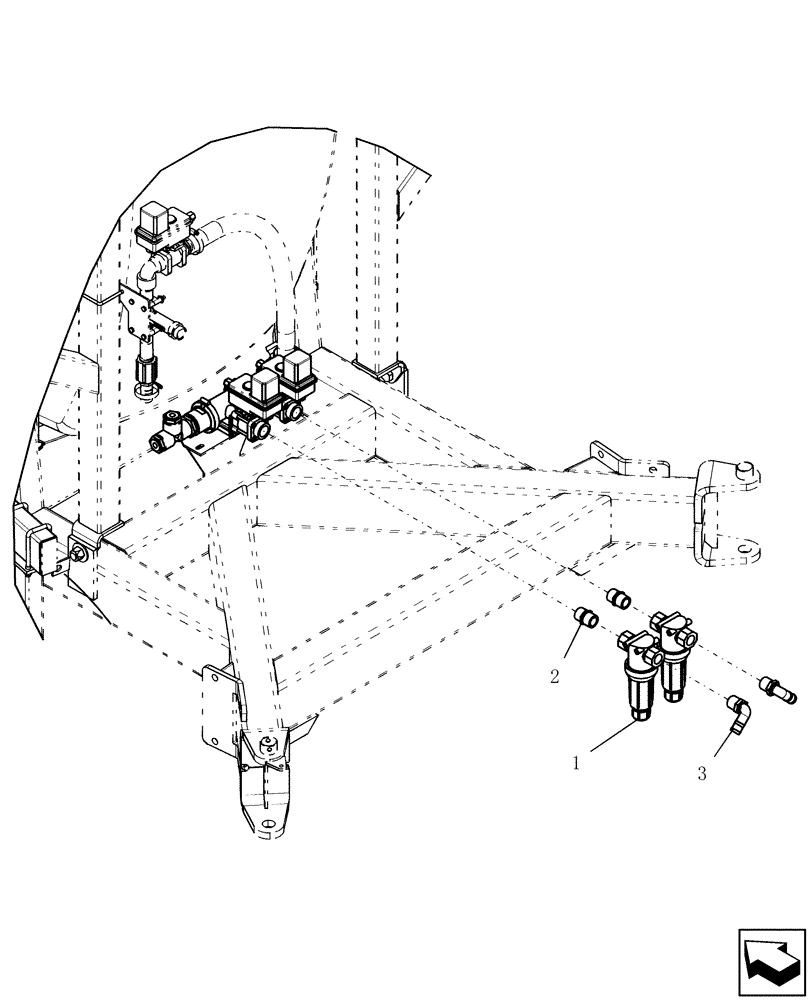

Схема запчастей Case IH 160 - (88.100.06[01]) - OPTION - LINE STRAINERS (88) - ACCESSORIES
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87607917

STRAINER ELEMENT

1" 100M TeeJet

2шт.

See Fig 88.100.06(02) For Service Parts Breakdown

1шт.

2

87608458

NIPPLE,1" Short Poly Nipple

poly nip 1"mpt short

2шт.

3

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

2шт.

Выбрано товаров: 4
