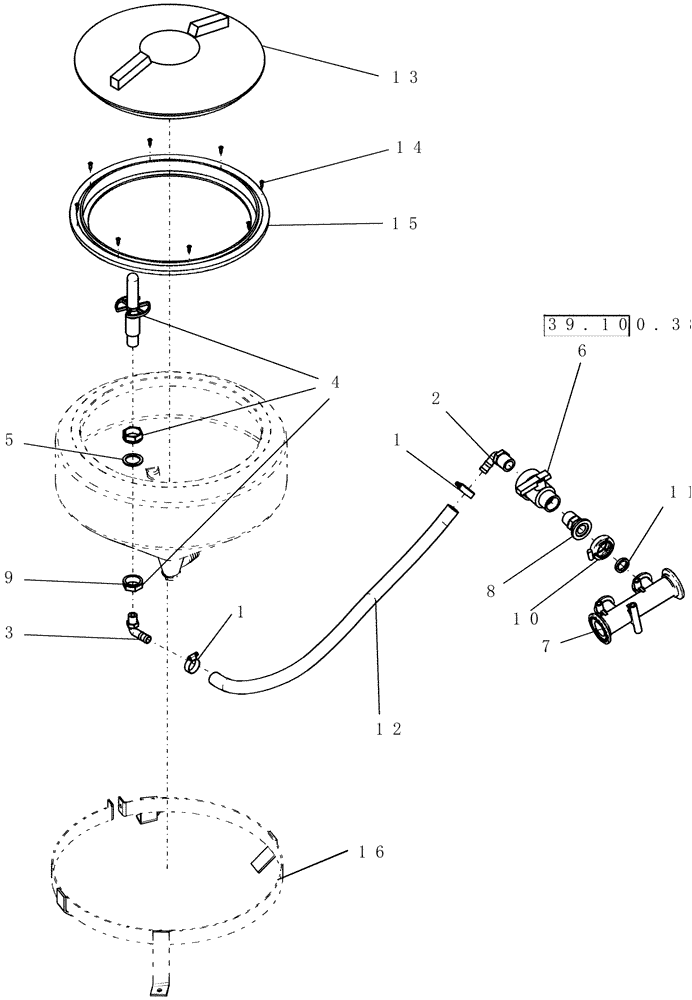

Запчасти Case IH 160 (88.100.04) - OPTION - RINSE TANK - CHEMICAL CONTAINER (88) - ACCESSORIES

1

86536660

HOSE CLAMP,25mm - 44mm

2шт.

2

7290

ELBOW

fitting, poly 90º 1" mpt 3/4" hb

1шт.

3

8041

ELBOW

fitting, poly 90º 1/2"mpt 3/4" hb

1шт.

4

21375

NOZZLE

container rinse

1шт.

5

21910

GASKET,33.53mm ID x 45.72mm OD x 3mm Thk

nozzle 1 5/16" id 1 51/64" od 3/16"

1шт.

6

22329

VALVE

valve ball 1"

1шт.

Refer to 39.100.38

1шт.

7

87451446

FITTING

poly flange manifold

1шт.

8

87502088

FITTING,1" Flange x 1" Male Thread

poly 1" mpt x 1" flange

1шт.

9

87558642

FLANGE NUT

flange poly RH thread

2шт.

10

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

1шт.

11

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

12

86990849

LARGE HOSE

Cut to Length of 33"

1шт.

13

21908

LID

tank no vent

1шт.

14

21700

SCREW

sms #10-24 x 3/4" fh, GA, sq-slt

8шт.

15

87508218

RING

Tank Lid With C-Gasket

1шт.

16

87502258

FRAME

induction tank

1шт.

22

87501375

TANK

induction low profile

1шт.

Includes 21908, 23505, 8 of 21700 and tank

1шт.

7328

VALVE

1/4"FPT X 1/4"FPT Ball Valve, Not Shown, Bottom Of Tank

1шт.
