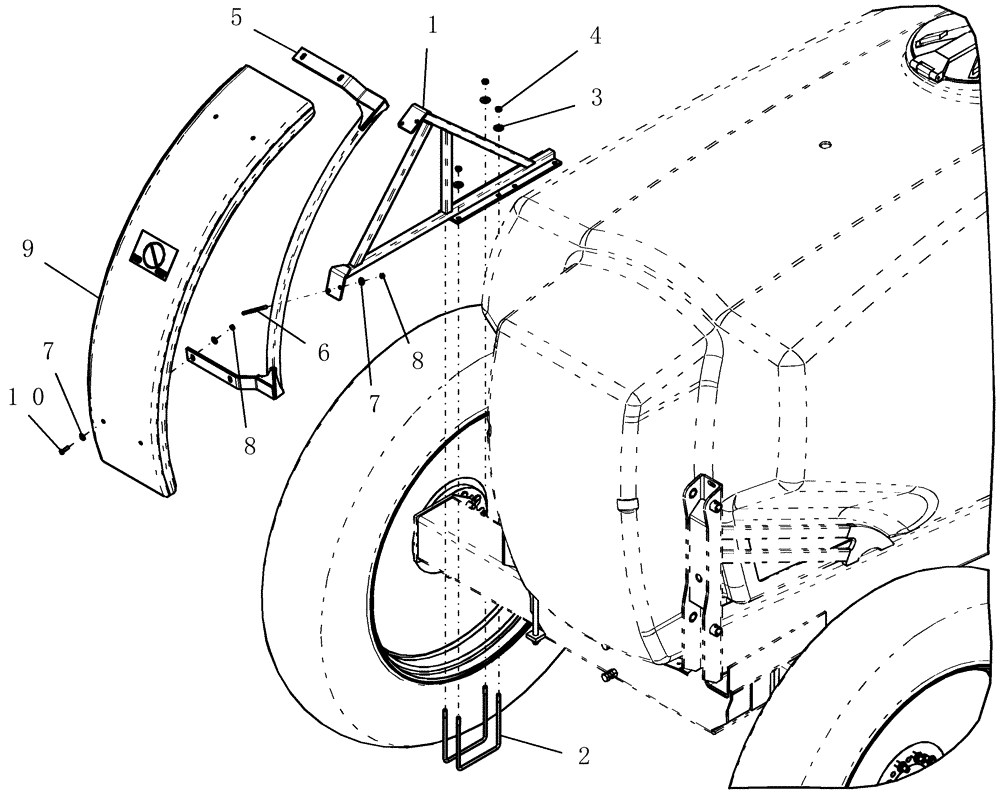

Запчасти Case IH 160 (88.100.01) - OPTION - FENDER (88) - ACCESSORIES

1

87500854

SUPPORT

fender mount

1шт.

2

87577729

U-BOLT

us 1/2" -13 8 7/64" w 9 1/2" d 1 1/4" thread

4шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

4

86992215

LOCK NUT,1/2"-13, GC

8шт.

5

47514389

FRAME

Fender

1шт.

6

425254A1

U-BOLT

us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

4шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

24шт.

8

88902

NUT,3/8"-16

16шт.

9

87272640

FENDER

Long/Holes

1шт.

10

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.
