(55.100.05) - ELECTRICAL - HARNESS, ISO ASU ADAPTER

Запчасти Case IH 100 (55.100.05) - ELECTRICAL - HARNESS, ISO ASU ADAPTER (55) - ELECTRICAL SYSTEMS

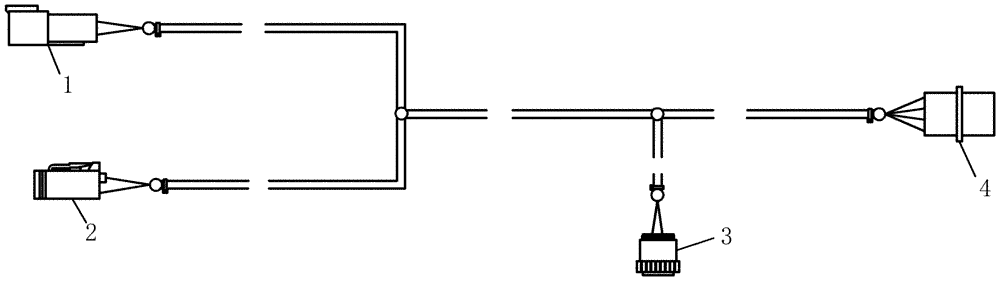

Схема запчастей Case IH 100 - (55.100.05) - ELECTRICAL - HARNESS, ISO ASU ADAPTER (55) - ELECTRICAL SYSTEMS
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87657174

HARNESS

ISO ASU adapter

1шт.

For tractors equipped with ISO 11783 displays. Works in conjunction with the display already in the tractor cab.

1шт.

1

87694154

CONTACT HOUSING,Male, 4 Pole

Deutsch DT4

1шт.

2

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

3

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

4

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.
