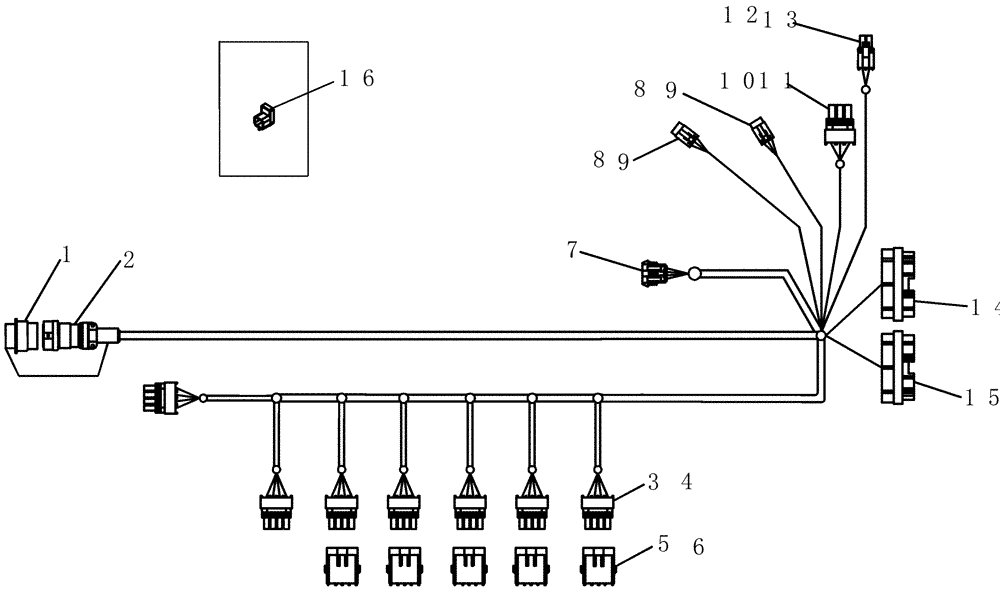

Запчасти Case IH 100 (55.100.03) - ELECTRICAL - ISOBUS SPRAYER HARNESS (55) - ELECTRICAL SYSTEMS

0

87534630

HARNESS

Sprayer Isobus

1шт.

1

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

7шт.

4

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

28шт.

5

245487C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

5шт.

6

225127C1

PLUG

cavity, green rubber

20шт.

7

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

8

51200009

STOP LOCK

3c plug

6шт.

9

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

2шт.

10

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

3шт.

11

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

1шт.

12

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

13

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

2шт.

14

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

15

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

16

87601142

ELEC CONNECTOR,Female, 6 Cavities

electronic control unit

1шт.

Sold separately from harness

1шт.
