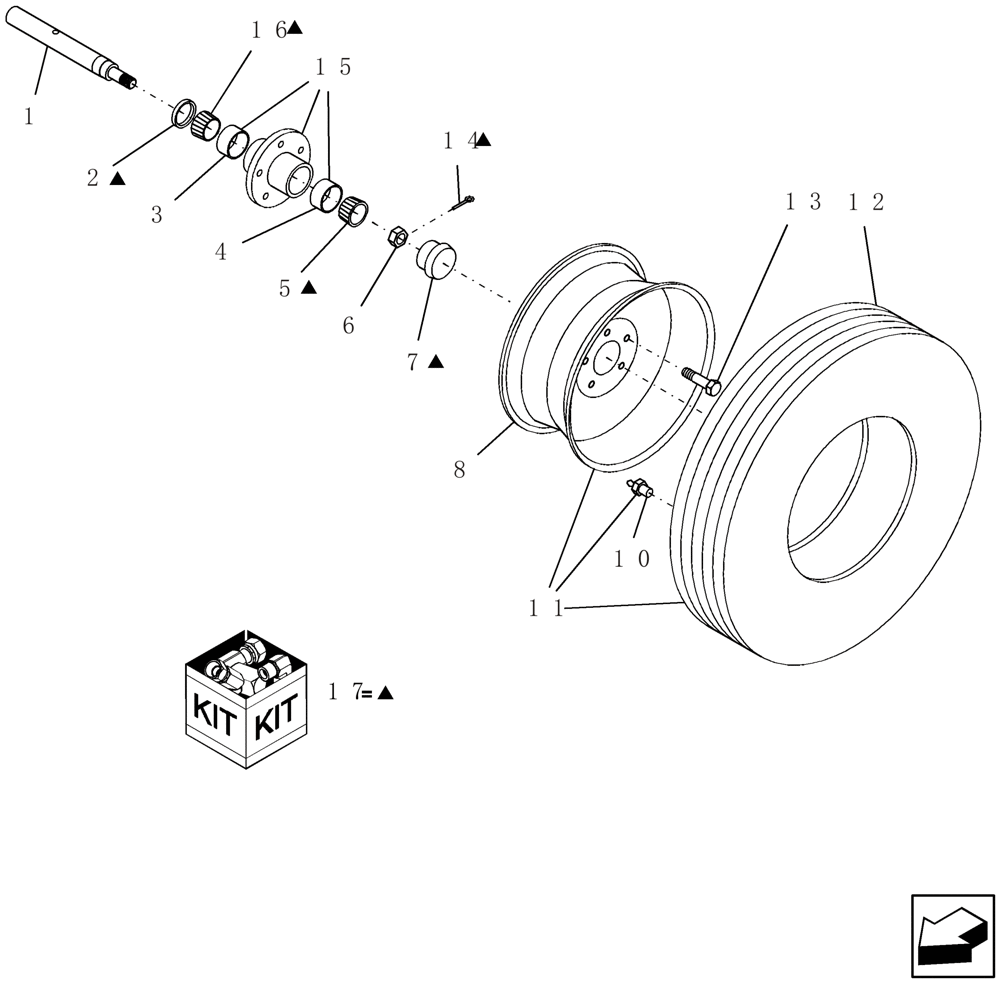

Запчасти Case IH 100 (44.100.10) - WHEELED BOOM - CASTER WHEEL SPINDLE ASSEMBLY (44) - WHEELS

0

CC-187A

HUB

spindle assy, h510/s411 11 1/4" long, Incl 1 - 2, 4 - 7, 13 - 14, 16

1шт.

1

1602

SPINDLE

S411 1 1/5" x 11 1/4" 1 hole c/w nut, Incl 6

1шт.

2

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

H411 & H511 hub

1шт.

3

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

1шт.

4

36725

BEARING CUP,45.26mm OD x 12.06mm W

#LM11910

1шт.

5

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

6

88886

SLOTTED NUT,3/4"-16

1шт.

7

23429

HUB CAP

dc12

1шт.

8

87505449

RIM

15" x 5" - 5 hole 1/4" offset

1шт.

10

196033

VALVE STEM

stem tr/415

1шт.

11

87504101

WHEEL ASSY

15x5 5h with 6/70 4 pr, Incl 10, 12

1шт.

12

87504089

TYRE/TIRE

6.70-15sl 4pr

1шт.

13

277538A1

BOLT,1/2" - 20 x 1.42"

wheel 1/2" wb10

5шт.

14

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

15

87506297

HUB

h510 c\w cups & studs

1шт.

16

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

16

84356153GV

BEARING

Value, Bearing Cone

1шт.

17

6511

KIT

hub bearing completion h411-h511, Incl 2, 5, 7, 16

1шт.

Not Shown

1шт.
