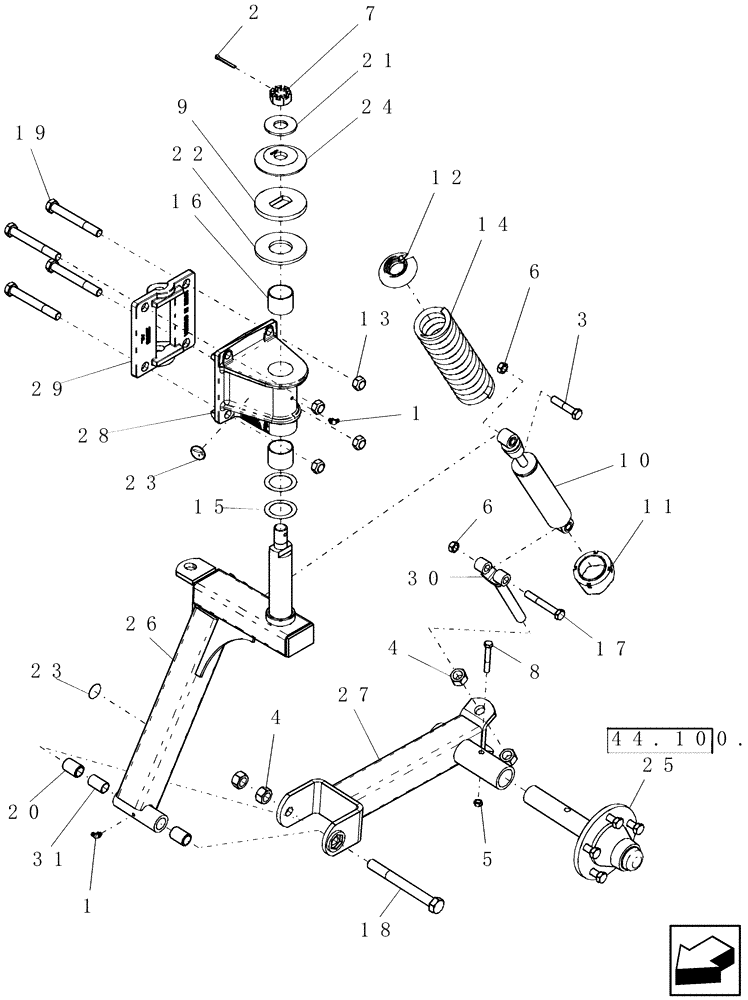

Запчасти Case IH 100 (44.100.08) - WHEELED BOOM - FRICTION CASTER WHEEL ASSEMBLY (44) - WHEELS

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

4

280954

NUT,3/4"-10, G5

4шт.

5

88902

NUT,3/8"-16

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

86020752

SLOTTED NUT

1"-14, G5

1шт.

8

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

9

21301

DISC

4" od

1шт.

10

21311

SHOCK ABSORBER

1 3/8" bore

1шт.

11

21317

RETAINER

lower 1 3/8"

1шт.

12

21318

RETAINER

upper 1 3/8"

1шт.

13

85700693

NUT,5/8" - 11, Gr C

4шт.

14

87505482

COMPRESSION SPRING

27/64" wire 3 3/64" od x 12 3/8" long

1шт.

14

87505481

COMPRESSION SPRING

15/32" wire 3 7/64" od x 12 3/8" long

1шт.

15

21590

WASHER,44.45mm ID x 63.5mm OD x 0.76mm Thk

1 3/4" id x 2 1/2" od x .03" hardened

2шт.

16

21701

BUSHING

Iglide 1 15/16" x 1 3/4" x 1 1/2"

2шт.

17

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

18

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

19

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

20

5184K

KIT

Nylatron* bushing - 1" od x 7/64" x 1 13/32" long

2шт.

21

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1шт.

22

6316

DISC

nylon light caster 4" od x 1 25/32" id x 1/4" thick

1шт.

23

6565

DECAL

grease 10 hours

2шт.

24

CA-174

PAD

flex

1шт.

25

CC-187A

HUB

spindle assy, h510/s411 11 1/4" long

1шт.

Refer to 44.100.10

1шт.

26

SQ-681

CASTER

friction LH

1шт.

Shown

1шт.

26

SQ-682

CASTER

friction RH

1шт.

Not Shown

1шт.

27

SQ-683V2

ARM

trailing

1шт.

28

SQ-688

BRACKET

mount, caster

1шт.

29

SQ-689

PLATE

caster lock

1шт.

30

SQ-693

BRACKET

mount, shock - lower

1шт.

31

SQ-803

SPACER

endmarker arm bushing

1шт.
