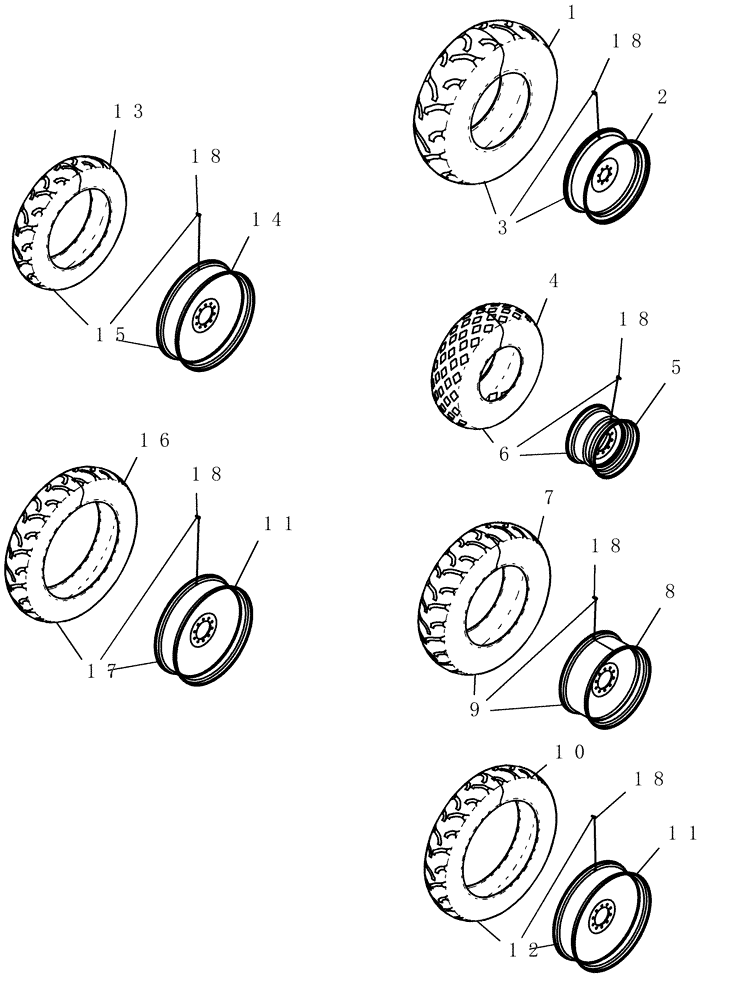

Запчасти Case IH 100 (44.100.06) - WHEEL - ASSEMBLY, CART SINGLE TIRE AND RIM (44) - WHEELS

1

87501917

TYRE/TIRE

380/80r38 142 r1

1шт.

2

23359

RIM

DX12X38 8 hole +1 1/8" offset

1шт.

3

87501916

WHEEL ASSY

380/80R38 R1 8 hole 1 1/8" LH

1шт.

3

87501915

WHEEL ASSY

380/80R38 R1 8 hole 1 1/8" RH

1шт.

4

8902

TYRE/TIRE

18.4 X 26 12 ply diamond tread

1шт.

5

87505463

RIM

DW16AX26 10 hole +0" offset

1шт.

6

87506221

WHEEL ASSY

dw16 x 26 10 hole with 18.4 - 12 ply tire

1шт.

7

87501924

TYRE/TIRE

480/80r38 155 r1

1шт.

8

87399168

RIM

16AX38 10 hole +0" offset

1шт.

9

87501923

WHEEL ASSY

480/80r38 r1 10h 0 LH

1шт.

9

87501920

WHEEL ASSY

480/80r38 r1 10h 0 RH

1шт.

10

87501929

TYRE/TIRE

380/90r46 152 r1 tl fs

1шт.

11

22555

RIM

W13AX46 10 hole +0" offset

1шт.

12

87501928

WHEEL ASSY

380/90r46 r1 10h 0 LH

1шт.

12

87501927

WHEEL ASSY

380/90r46 r1 10h 0 RH

1шт.

13

87501934

TYRE/TIRE

320/90r46 153 r1 tl gy

1шт.

14

87501937

RIM

W10AX46 10 hole +0" offset

1шт.

15

87501933

WHEEL ASSY

320/90r46 r1 10h 0 LH

1шт.

15

87501932

WHEEL ASSY

320/90r46 r1 10h 0 RH

1шт.

16

87501946

TYRE/TIRE

380/85r46 165 r1 tl gy

1шт.

17

87501945

WHEEL ASSY

380/85r46 r1 10h 0 LH

1шт.

17

87501939

WHEEL ASSY

380/85r46 r1 10h 0 RH

1шт.

18

86507333

VALVE STEM

tr/618a

1шт.
