Запчасти Case IH 100 (44.100.04) - WHEEL - ASSEMBLY, CART DUAL 1021 HUB AND SPINDLE (44) - WHEELS

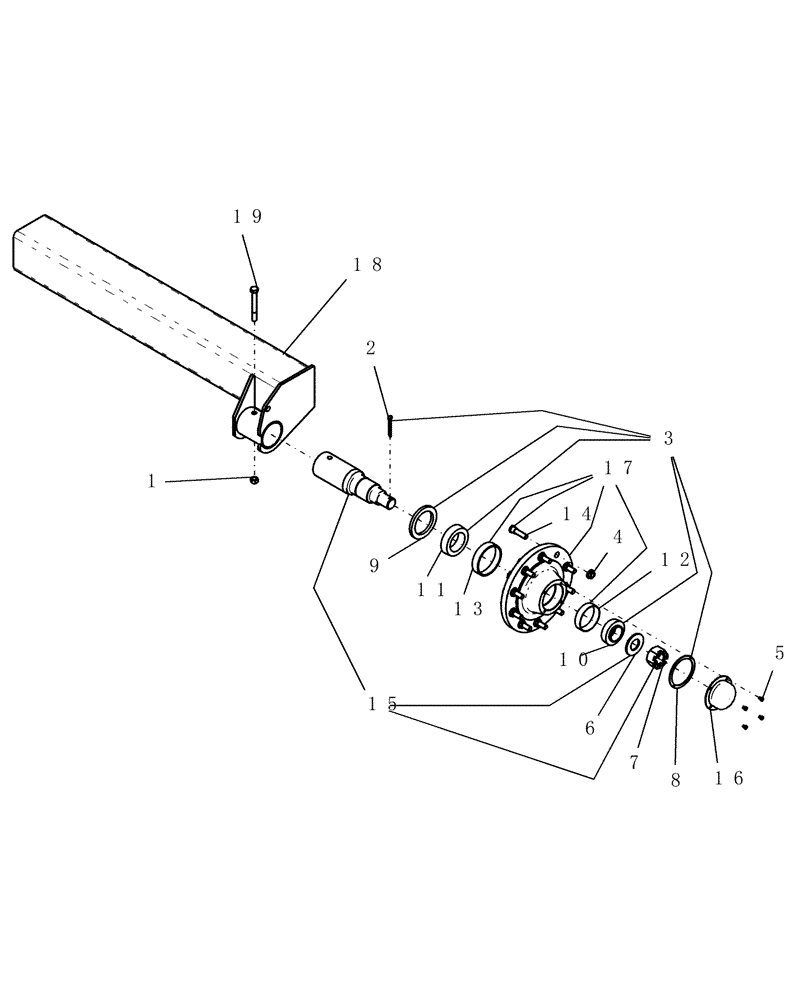

Схема запчастей Case IH 100 - (44.100.04) - WHEEL - ASSEMBLY, CART DUAL 1021 HUB AND SPINDLE (44) - WHEELS
16
12
2
5
10
19
4
17
14
6
11
18
15
1
3
9
8
7
13

Артикул

Название

Примечание

Количество

1

280375

NUT,3/4"-10, GC

1шт.

2

281072

COTTER PIN,5/16" Dia x 3"

1шт.

3

412770A1

WHEEL BEARING KIT

hub completion - h1021

1шт.

Includes 2488, 9861, 9864, 9865, 9866

1шт.

4

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

5

1027683

BOLT

wheel 5/16"-18 x 1/2", G2

4шт.

6

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

spindle wa35 2 1/32" id

1шт.

7

51200125

SLOTTED NUT,2"-12, G5

1шт.

8

9861

GASKET

rubber

1шт.

9

9864

OIL SEAL

oil SE55

1шт.

10

86837562

ROLLER BEARING,66.67mm ID x 38.35mm W

#HM212049

1шт.

11

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

#HM218248

1шт.

12

70680631

BEARING CUP,122.24mm OD x 29.72mm W

#HM212010

1шт.

13

A50529

BEARING CUP,147.03mm OD x 32.5mm W

#HM218210

1шт.

14

22792

STUD

3/4"-16 x 3 9/32", G5

10шт.

15

87600886

ASSEMBLY

s1020- 4 1/2" x 16 5/8" sp cw nut and washer

1шт.

16

87506288

HUB CAP

dc28 bolt on

1шт.

17

87506289

HUB

H1021 with cups & studs

1шт.

18

87504369

AXLE

axle, 10b 1 offset duals

1шт.

19

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

Выбрано товаров: 20
