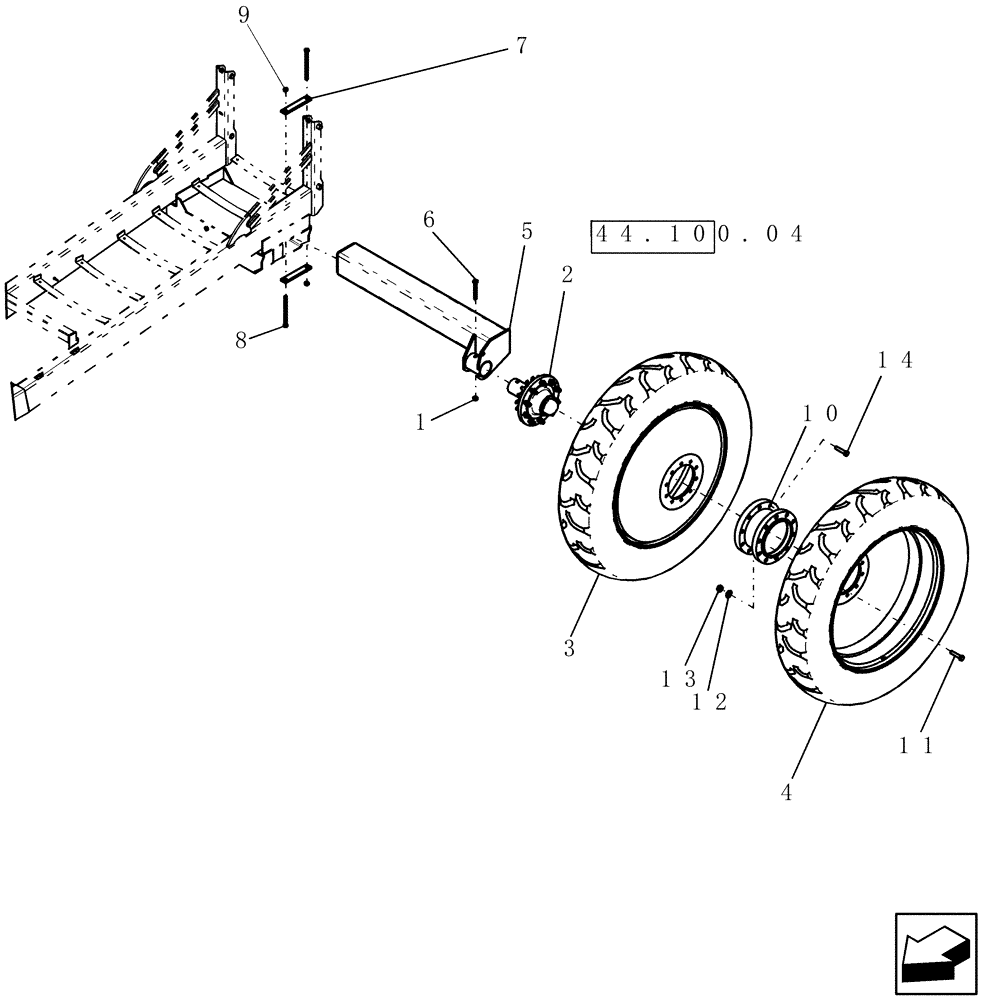

Запчасти Case IH 100 (44.100.01) - WHEEL - ASSEMBLY, CART DUAL (44) - WHEELS

1

280375

NUT,3/4"-10, GC

2шт.

2

87600885

HUB

and spindle assembly H1021-16.62

2шт.

3

87600892

WHEEL ASSY

With Tire 320/90R46 R1 10H 11 RH

2шт.

3

87600894

WHEEL ASSY

with tire 380/90r46 r1 10h 11 RH

2шт.

Used with 87600865

1шт.

4

87600893

WHEEL ASSY

With Tire 320/90R46 R1 10H 11 LH

2шт.

4

87600895

WHEEL ASSY

with tire 380/90r46 r1 10h 11 LH

2шт.

Used with 87600865

1шт.

5

87504369

AXLE

axle, 10b 1 offset duals

2шт.

6

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

7

87445688

CLAMP

axle 8"

2шт.

8

413-12176

BOLT,3/4"-10 x 11", Gr 5

4шт.

9

280375

NUT,3/4"-10, GC

4шт.

10

87600865

SPACER

axle 8" 10 bolt

1шт.

22" & 30" Spacing

1шт.

Optional

1шт.

10

87545961

SPACER

axle 15" 10 bolt

1шт.

Not Shown

1шт.

37" Spacing

1шт.

Optional

1шт.

11

87670757

BOLT,Hex, M22 x 80mm, Cl 10.9

Hex, M22 x 80, 10.9, Full Thd

20шт.

12

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

20шт.

13

280881

NUT,7/8"-9, G8

20шт.

14

426-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 8

20шт.
