(39.100.46) - ELECTRICAL - WHEELED BOOM - BACK-UP CABLE

Запчасти Case IH 100 (39.100.46) - ELECTRICAL - WHEELED BOOM - BACK-UP CABLE (39) - FRAMES AND BALLASTING

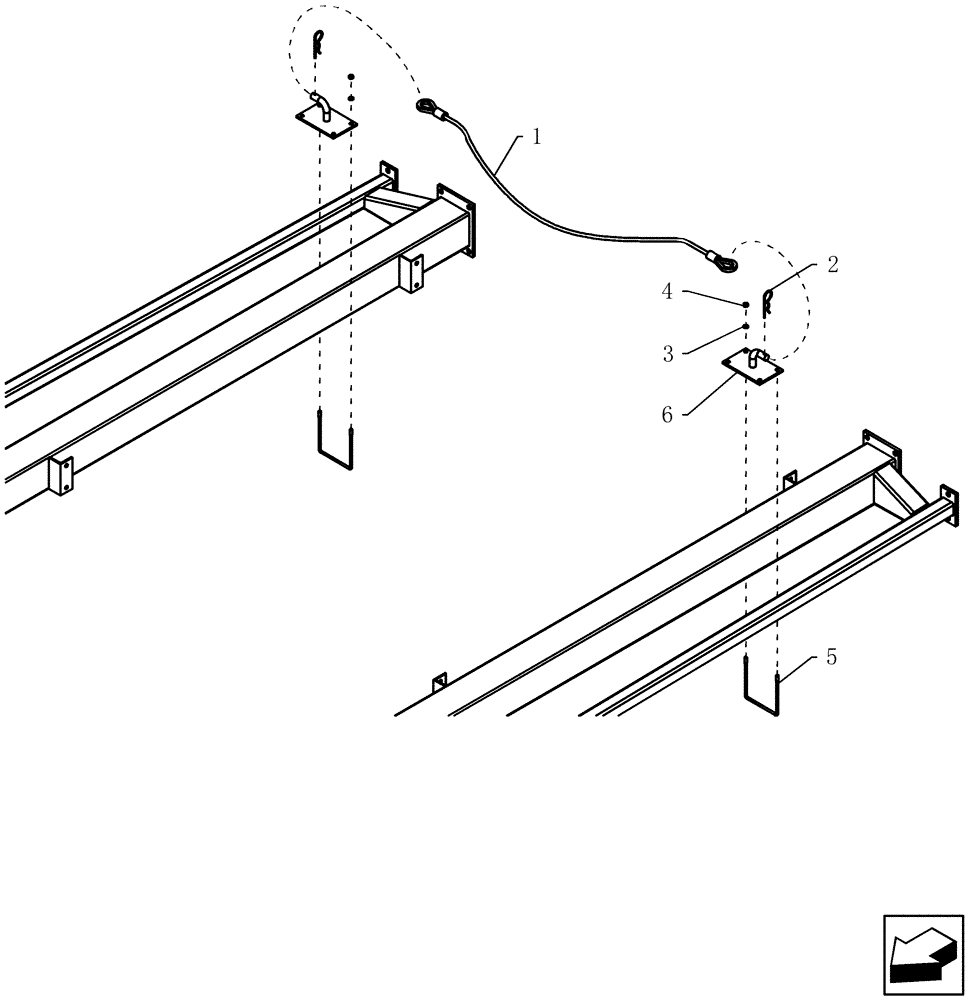

Схема запчастей Case IH 100 - (39.100.46) - ELECTRICAL - WHEELED BOOM - BACK-UP CABLE (39) - FRAMES AND BALLASTING
4
3
6
1
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

SQ-131K

KIT

back-up

1шт.

1

7254

CABLE

1/4" x 8' usable two thimble ends

1шт.

2

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

3

80681

LOCK WASHER,5/16"

8шт.

4

9635082

NUT,5/16" - 18, Gr 5

8шт.

5

21331

U-BOLT

us 5/16" x 5 3/8" w x 5 3/4" d 3/4" thread

4шт.

6

SQ-748

HOOK

transport/back-up cable

1шт.
