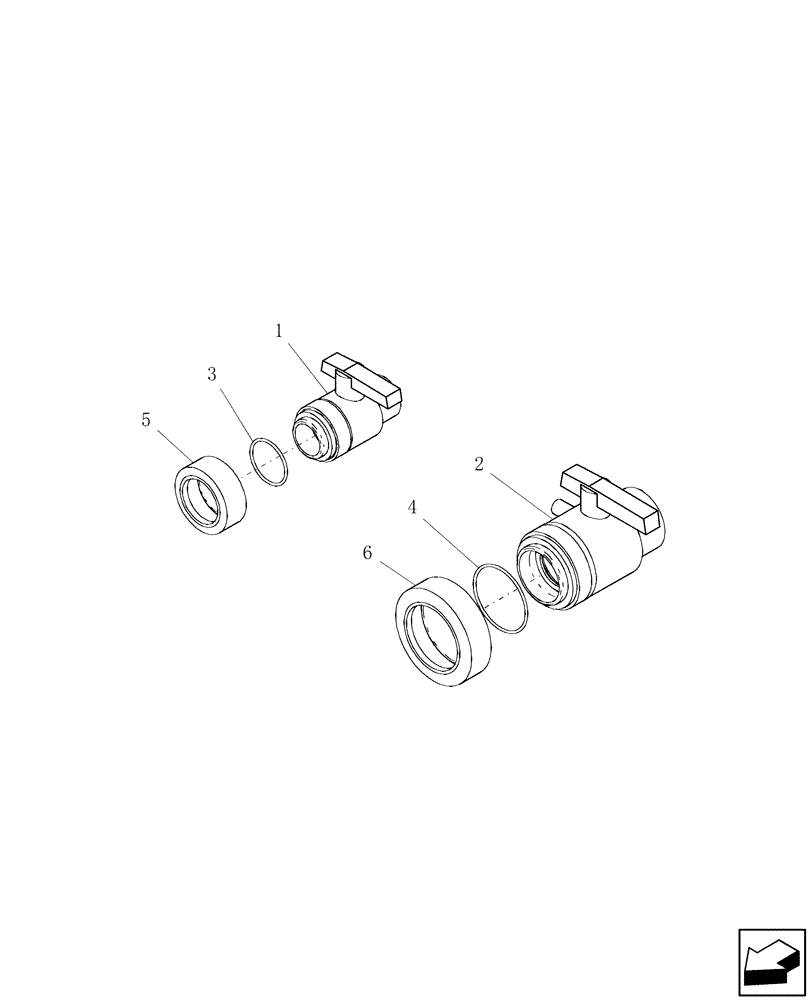

Запчасти Case IH 100 (39.100.38) - TANK - CART ARAG VALVE DETAILS (39) - FRAMES AND BALLASTING

1

22329

VALVE

valve ball 1"

1шт.

Replacement parts 23266 and 87506475

1шт.

2

22330

VALVE

ball 1 1/2"

1шт.

Replacement parts 23267 and 87577846

1шт.

3

23266

O-RING,1.674" ID x 1.88" OD x 0.103"

1 43/64" id 1 7/8" od 3/32" thick

1шт.

4

87324905

O-RING,2.487" ID x 2.693" OD x 0.103"

2 37/64" id 2 3/4" od 3/32" thick

1шт.

5

87506475

UNION

valve cap 1" arag

1шт.

6

87577846

UNION

valve cap 1 1/2" arag

1шт.
