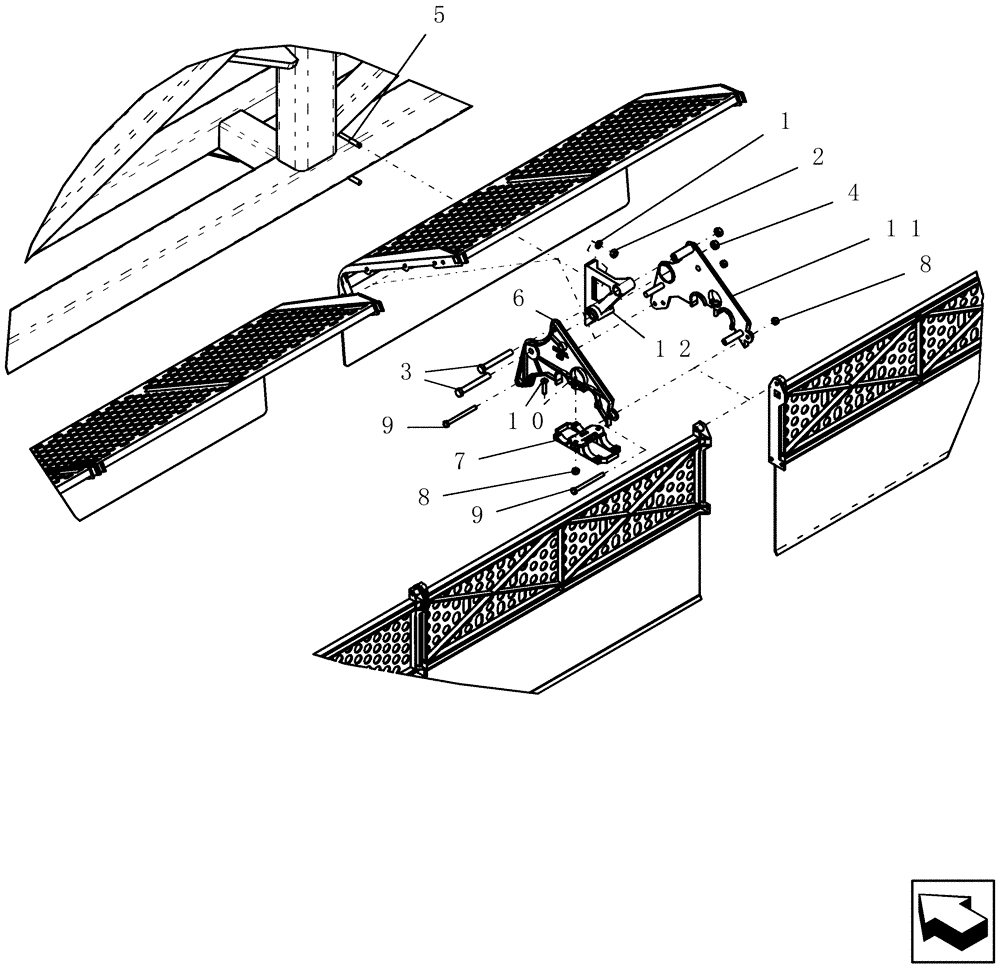

Запчасти Case IH 100 (39.100.36) - SUSPENDED BOOM - PANEL MOUNT ASSEMBLY (39) - FRAMES AND BALLASTING

1

80681

LOCK WASHER,5/16"

2шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

4

88902

NUT,3/8"-16

2шт.

5

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

1шт.

For 4" x 4" tube

1шт.

5

7611

U-BOLT

us 5/16" x 3 1/16" w x 3 3/4" d 1" thread

1шт.

For 3" x 3" tube

1шт.

5

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

1шт.

For 2" x 2" tube

1шт.

6

8317

BRACKET

windscreen panel mount LH

1шт.

7

8353

CLAMP,33.401mm ID

windscreen panel mount bracket

1шт.

8

8914

LOCK NUT

1/4"-20 stainless steel nylon

4шт.

9

8916

SCREW,FLAT, 1/4 x 3/4"

cap 1/4"-20 x 3" G5

2шт.

10

8920

SCREW,Pan Hd, 1/4" - 20 x 1", Sl Sq Drive, Stainless

mch 1/4"-20 x 1"

2шт.

11

22544

BRACKET

windscreen panel mount RH

1шт.

12

87502037

BRACKET

panel mount

1шт.
