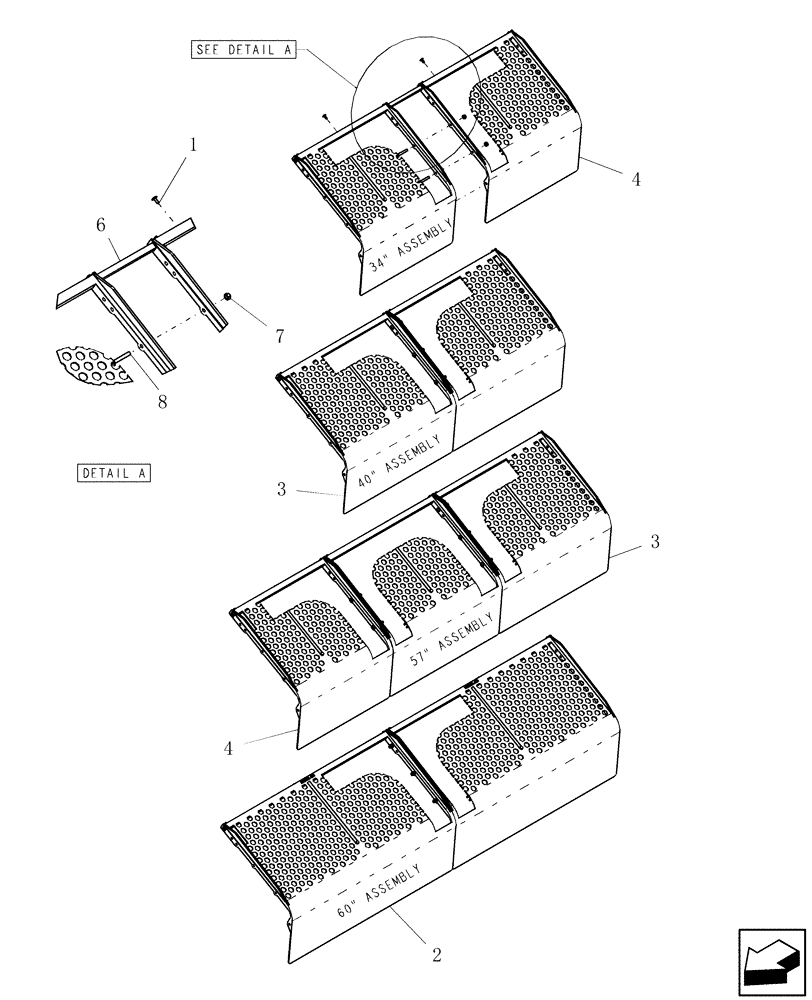

Запчасти Case IH 100 (39.100.33) - WHEELED BOOM - WINDSCREEN FRONT PANEL DETAILS (39) - FRAMES AND BALLASTING

1

22537

SELF-TAP SCREW

#8 X 1/2" ph sd pi ss

9шт.

2

87558398

PANEL

windscreen 30" front poly

2шт.

3

8481

PANEL

windscreen 20" front poly

4шт.

4

8482

PANEL

windscreen 17" front poly

3шт.

6

8898

TUBE

square aluminum 29/64" x 33 3/4"

1шт.

34" Assembly

1шт.

6.1

8906

TUBE

square aluminum 29/64" x 39 3/4"

1шт.

40" Assembly

1шт.

6.2

8827

TUBE

square aluminum 29/64" x 56 3/4"

1шт.

57" Assembly

1шт.

6.3

8495

TUBE

square aluminum 29/64" x 59 5/8"

1шт.

60" Assembly

1шт.

7

8914

LOCK NUT

1/4"-20 stainless steel nylon

18шт.

8

9711

SCREW,Pan Hd, 1/4" - 20 x 1.75"

mch 1/4"-20 x 1 3/4"

18шт.
