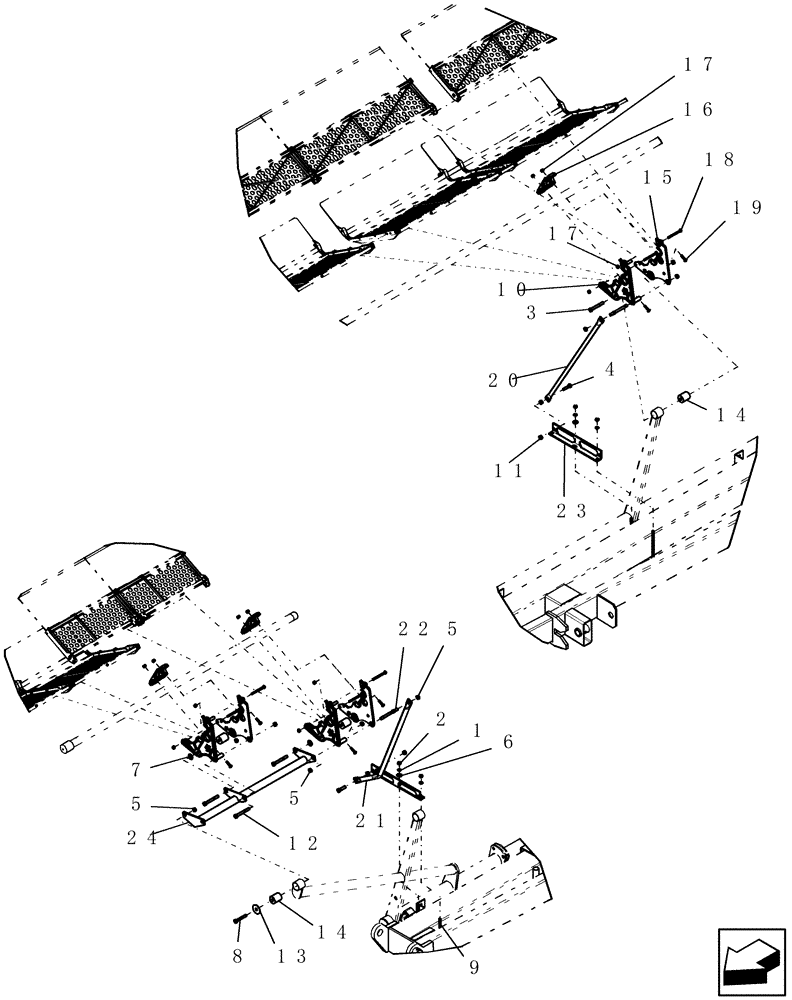

Запчасти Case IH 100 (39.100.32) - WHEELED BOOM - WINDSCREEN PANEL MOUNTS (39) - FRAMES AND BALLASTING

1

80681

LOCK WASHER,5/16"

6шт.

2

9635082

NUT,5/16" - 18, Gr 5

6шт.

3

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

5

88902

NUT,3/8"-16

12шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

9

21331

U-BOLT

us 5/16" x 5 3/8" w x 5 3/4" d 3/4" thread

3шт.

10

22544

BRACKET

windscreen panel mount RH

4шт.

11

9628503

NUT,3/8"-16, G5

6шт.

12

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3шт.

13

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

1шт.

14

6975

BUSHING,44.5mm ID x 52.43mm OD x 12.7mm L

windscreen pivot

5шт.

15

8317

BRACKET

windscreen panel mount LH

4шт.

16

8353

CLAMP,33.401mm ID

windscreen panel mount bracket

4шт.

17

8914

LOCK NUT

1/4"-20 stainless steel nylon

37шт.

18

8916

SCREW,FLAT, 1/4 x 3/4"

cap 1/4"-20 x 3" G5

8шт.

19

8920

SCREW,Pan Hd, 1/4" - 20 x 1", Sl Sq Drive, Stainless

mch 1/4"-20 x 1"

8шт.

20

SP-911

LINK

sprayboom control 27"

2шт.

21

SQ-211

LINK

sprayboom control offset

1шт.

22

SQ-361

STUD

windscreen bracket mount

3шт.

23

SQ-647

BRACKET

control link - secondary boom

3шт.

24

SQ-719

BAR

connector

1шт.
