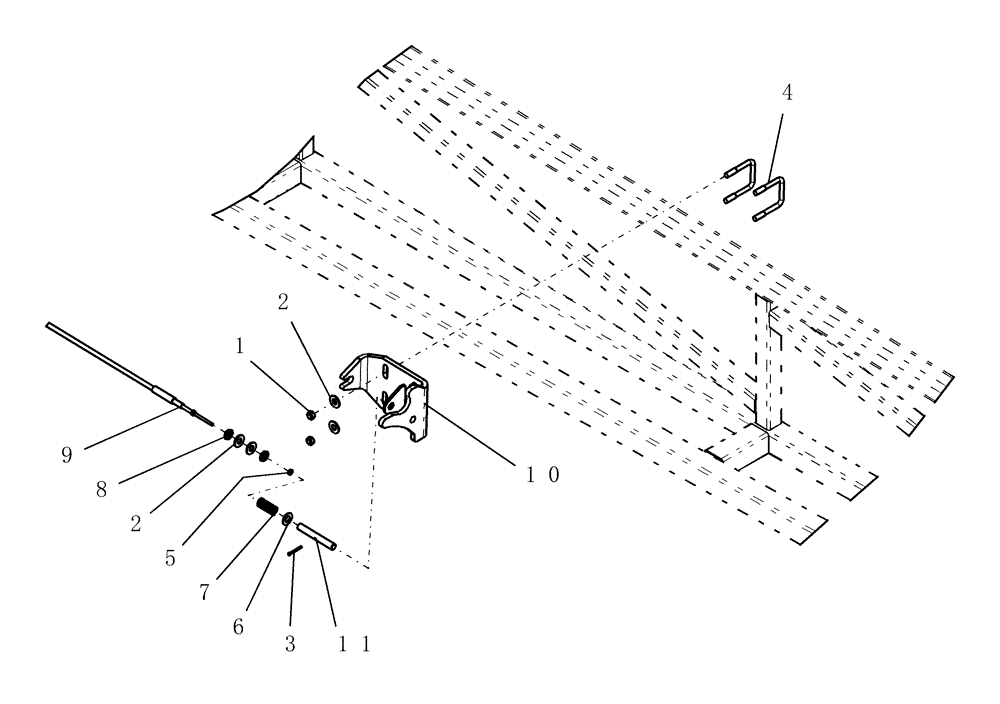

Запчасти Case IH 100 (39.100.29) - SUSPENDED BOOM - OUTER BOOM LOCK (39) - FRAMES AND BALLASTING

1

88902

NUT,3/8"-16

4шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

3

80755

COTTER PIN,1/8" OD x 1" L

1шт.

4

425254A1

U-BOLT

us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

2шт.

5

87825

NUT,#10-32

2шт.

6

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

1шт.

7

87505489

COMPRESSION SPRING

23/32" x 2"

1шт.

8

87577862

JAM NUT

jam 1/2"-20 11/64" thk solenoid coil keeper

4шт.

9

87502227

CABLE

control 168"

1шт.

10

87451291

BRACKET

outer boom lock lt

1шт.

Shown

1шт.

10

87451293

BRACKET

outer boom lock rt

1шт.

Not Shown

1шт.

11

87449759

HEADLESS PIN

boom lock

1шт.
