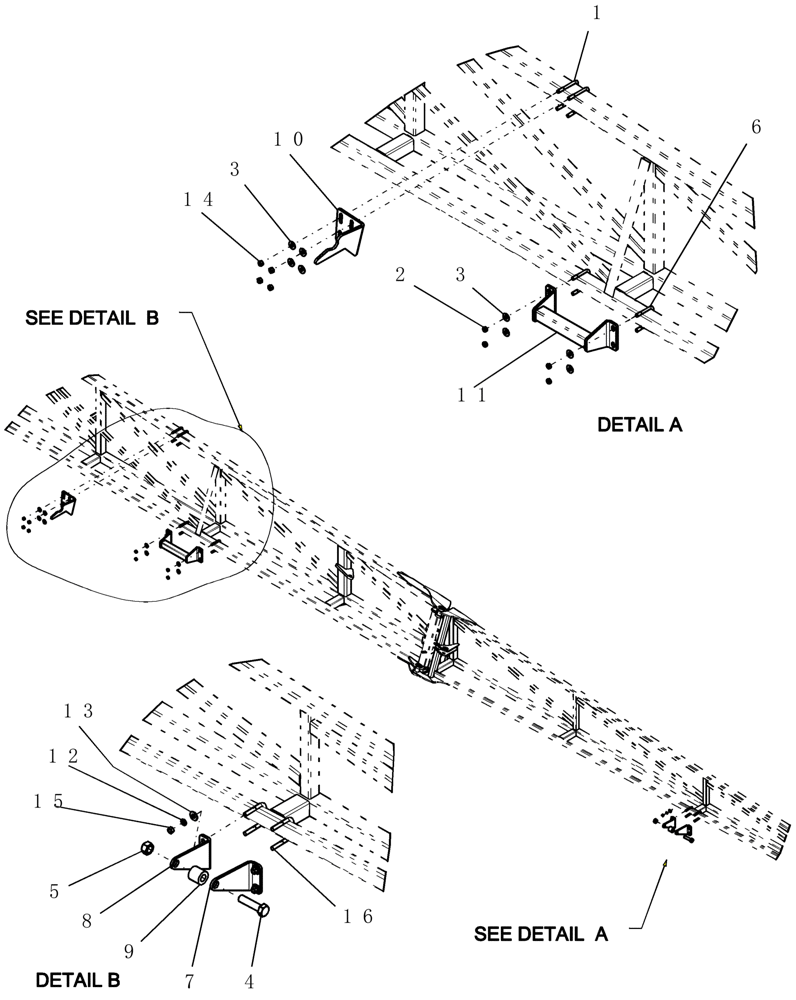

Запчасти Case IH 100 (39.100.28) - SUSPENDED BOOM - BOOM RESTS (39) - FRAMES AND BALLASTING

1

1404

U-BOLT

1/2" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

2шт.

2

86992215

LOCK NUT,1/2"-13, GC

8шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

12шт.

4

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

5

280375

NUT,3/4"-10, GC

2шт.

6

1344524C1

U-BOLT

1/2" x 2 9/18" w x 3 1/2" d 1" thread

2шт.

7

87451299

BRACKET

inner boom roller lt

1шт.

8

87451301

BRACKET

inner boom roller rt

1шт.

9

87503700

ROLLER

19.45 mm id x 38.1 mm od x 36 mm long

1шт.

10

87501547

PLATE

rest outer boom 80' rt

1шт.

10

87501565

PLATE

rest outer boom 80' lt

1шт.

10

87449754

PLATE

rest outer boom 90' lt

1шт.

10

87449750

PLATE

rest outer boom 90' rt

1шт.

10

87449758

PLATE

rest outer boom 100' lt

1шт.

10

87451307

PLATE

rest outer boom 100' rt

1шт.

10

87451303

PLATE

rest inner boom 120/132' lt

1шт.

10

87451305

PLATE

rest inner boom 120/132' rt

1шт.

11

87445921

FRAME

boom rest

1шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

14

280431

NUT,1/2"-13, G5

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

425254A1

U-BOLT

3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

2шт.
