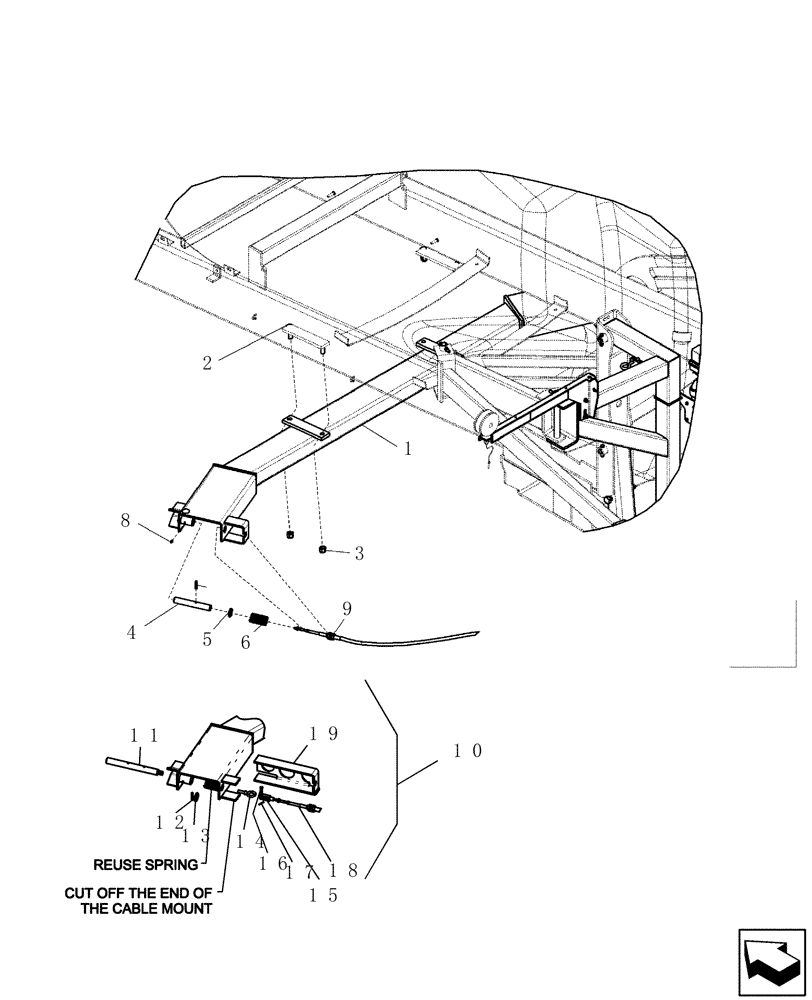

Запчасти Case IH 100 (39.100.27) - WHEELED BOOM - LATCH AND CABLE (39) - FRAMES AND BALLASTING

1

87501337

FRAME

latch, Years: -01-JAN-10

1шт.

1

84247917

MOUNT

Cable, Start Year: 01-JAN-10

1шт.

2

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

3

85700693

NUT,5/8" - 11, Gr C

4шт.

4

87505405

PIN

latch 25.4 mm x 166 mm

1шт.

5

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

6

87506237

COMPRESSION SPRING

13/64" wire 1 15/32" od x 5 19/32" long

1шт.

7

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

8

87414

LUBE NIPPLE,1/4" - 28

1шт.

9

87505406

CABLE

control 60 series

1шт.

10

84247181

KIT

Lock Pin, Wheeled Boom

1шт.

Includes Refs. 11 - 19

1шт.

11

SQ-165

PIN

trip breakaway

1шт.

12

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

13

3456

WASHER,1 1/32" x 1 1/2" x .120"

1шт.

14

84246787

EYEBOLT

3/8"-16 x 1 1/4", 1" x 3 1/4" eye

1шт.

15

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

16

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

17

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

18

87505406

CABLE

control 60 series

1шт.

19

84247170

MOUNT

Cable

1шт.

100

84329941

INSTRUCTION

Lock Pin Kit

1шт.
