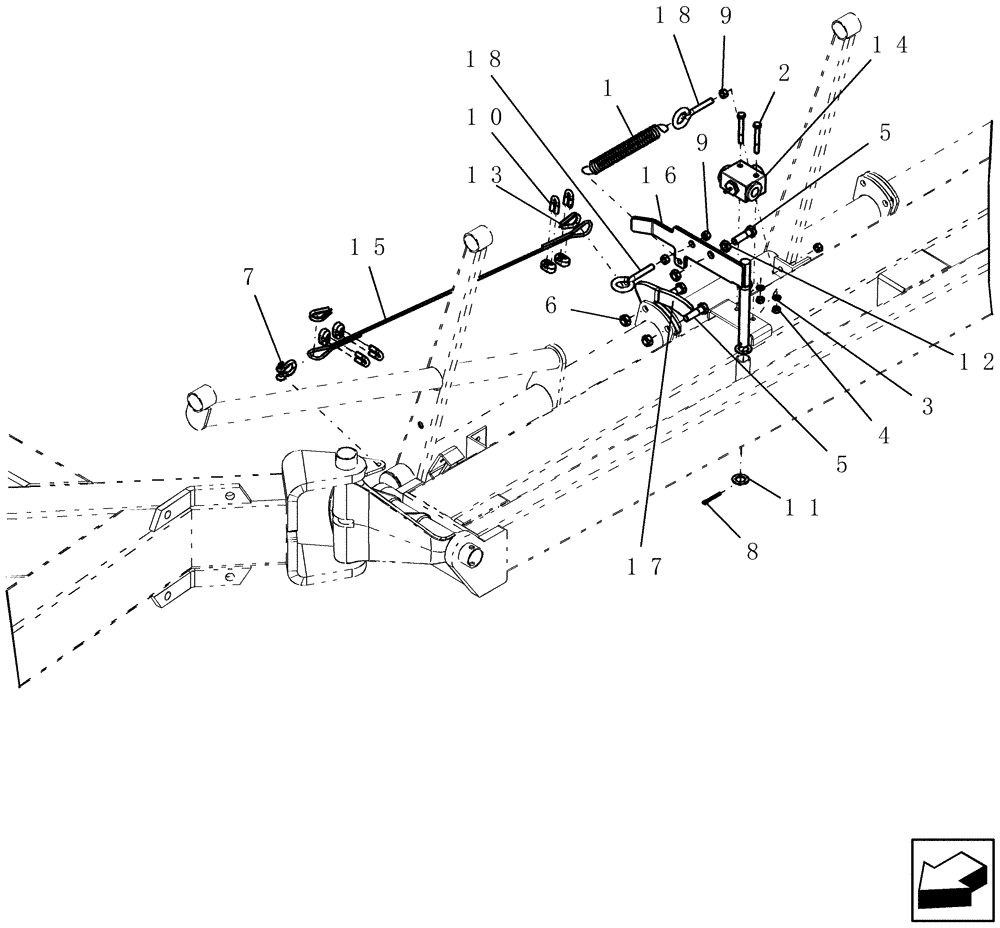

Запчасти Case IH 100 (39.100.26) - WHEELED BOOM - SECONDARY STOP VALVE (39) - FRAMES AND BALLASTING

1

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

2

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

86836008

SHACKLE

1/4"

1шт.

8

86523851

COTTER PIN,5/32" x 1 1/4"

1шт.

9

9628503

NUT,3/8"-16, G5

4шт.

10

432641A1

CLAMP

cable 3/16" wire rope

4шт.

11

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

2шт.

12

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

13

87577687

EYELET

cable thimble 3/16"

2шт.

14

51200150

CONTROL VALVE

depth stop assembly complete

1шт.

14

6284

CARTRIDGE

valve depth stop

1шт.

15

SQ-156

CABLE

break-away 3/16" x 50"

1шт.

16

SQ-644

VALVE

actuater

1шт.

17

SQ-645

CAM

actuater

1шт.

18

SQ-745

EYEBOLT

3/8" x 4"

2шт.
