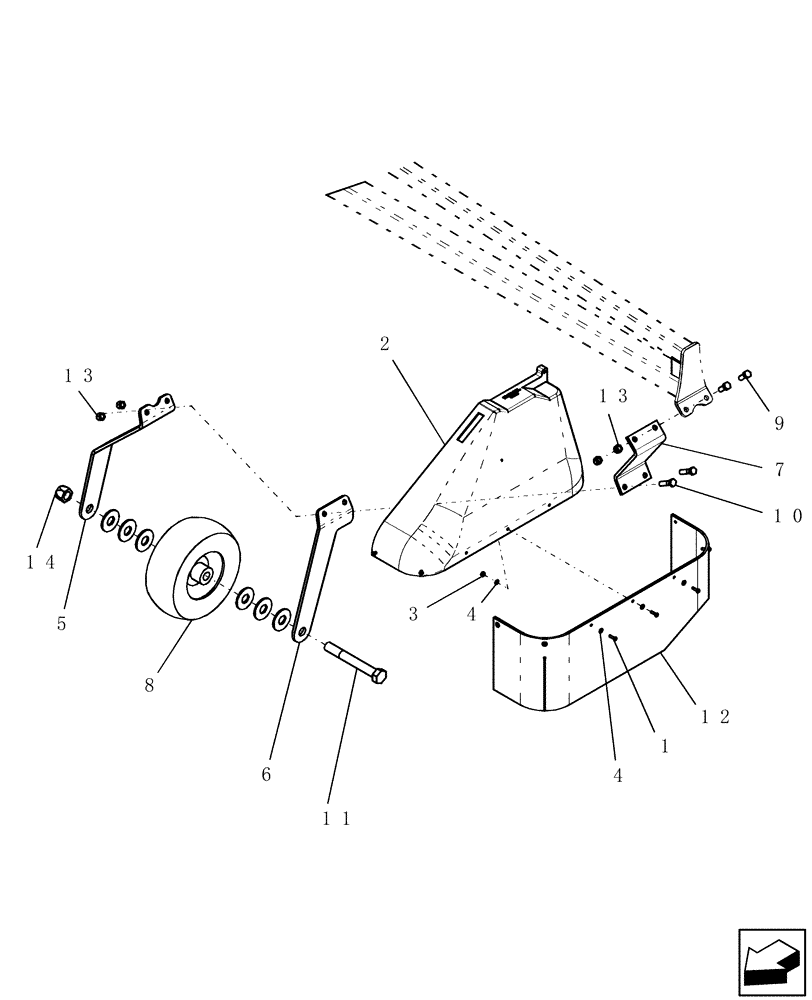

Запчасти Case IH 100 (39.100.25) - SUSPENDED BOOM - END SCREEN WHEEL (39) - FRAMES AND BALLASTING

1

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

14шт.

2

87504959

PANEL

end windscreen short RH

1шт.

Not Shown

1шт.

2

87504958

PANEL

end windscreen short LH

1шт.

3

21592

LOCK NUT

#8-32 stainless steel

14шт.

4

95-34019

WASHER,0.19" ID x 0.44" OD x 0.04" Thk

28шт.

5

87502543

BRACKET

end screen wheel inner lt

1шт.

Shown

1шт.

5

87502541

BRACKET

end screen wheel inner rt

1шт.

Not Shown

1шт.

6

87502535

BRACKET

end screen wheel outer lt

1шт.

Shown

1шт.

7

87502537

BRACKET

end screen wheel outer RH

1шт.

Not Shown

1шт.

7

87502687

BRACKET

endscreen mount

1шт.

8

87502278

TYRE/TIRE

assy 9x3.50-4 4 ply tl

2шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

12

87504960

SKIRT

endscreen

2шт.

Shown

1шт.

13

88902

NUT,3/8"-16

8шт.

14

280375

NUT,3/4"-10, GC

2шт.
