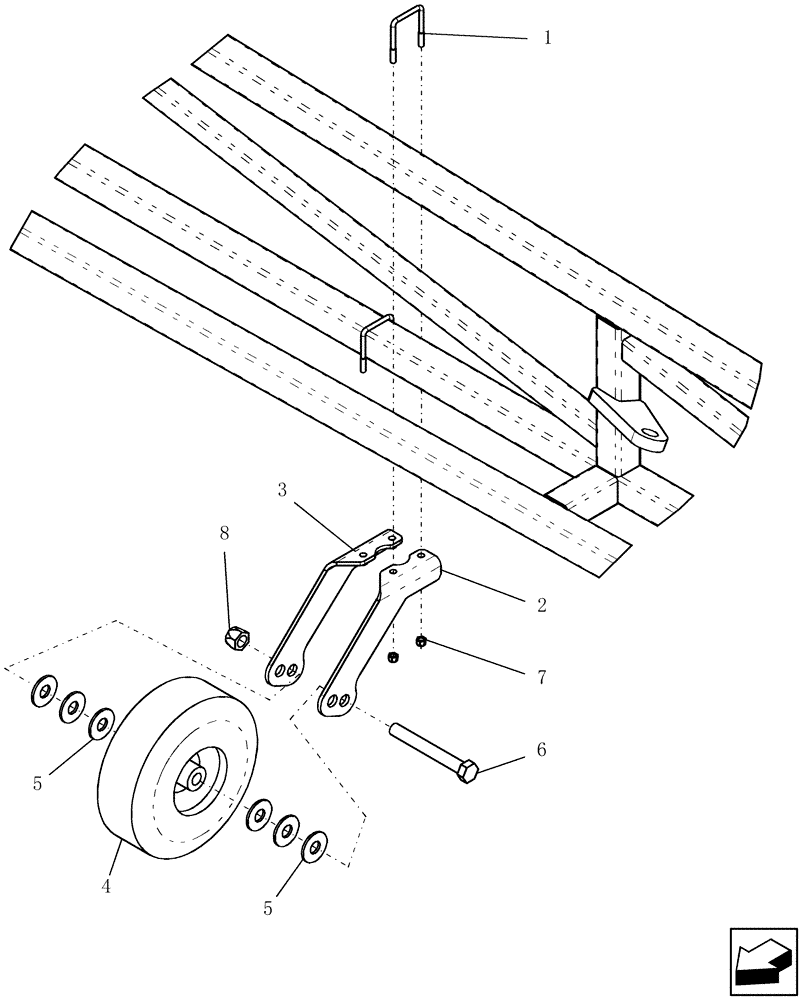

Запчасти Case IH 100 (39.100.22) - SUSPENDED BOOM - MID SECTION BOOM WHEEL - NO WINDSCREEN (39) - FRAMES AND BALLASTING

1

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

2шт.

2

87452335

BRACKET

boom wheel lt

1шт.

3

87452338

BRACKET

boom wheel rt

1шт.

4

87502279

TYRE/TIRE

assy 4.10/3.50x4 2ply tl

1шт.

5

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

6шт.

6

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

7

280736

NUT,5/16"-18, GC

4шт.

8

280375

NUT,3/4"-10, GC

1шт.
