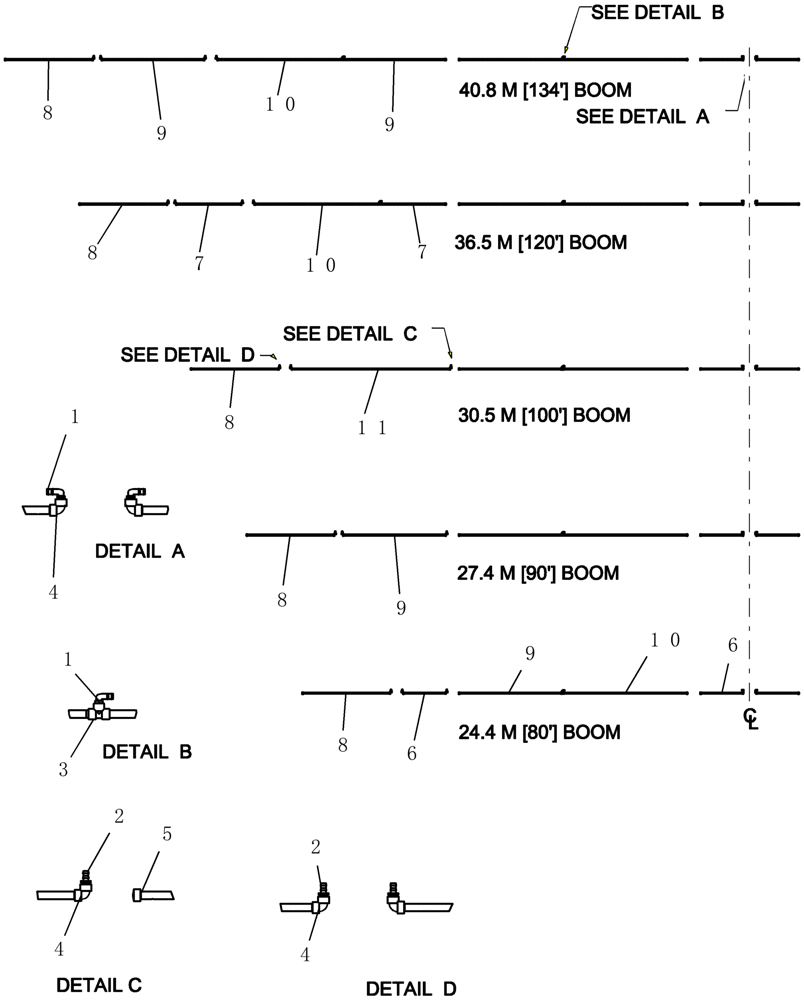

Запчасти Case IH 100 (39.100.18) - SUSPENDED BOOM - SPRAY BOOM LAYOUT (39) - FRAMES AND BALLASTING

1

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

1шт.

2

6754

FITTING

poly straight adapter 1" mp 1" hb

1шт.

3

6756

TEE

fitting, poly 1" fp

1шт.

4

6758

ELBOW

fitting, poly 90º 1"fp 1"fp

1шт.

5

87577690

CAP,1" Cap

fit poly 1" fp

1шт.

6

87452548

PIPE

poly 1" x 46" long 3 hole

1шт.

7

87452549

PIPE

poly 1" x 70 1/2" long 4 hole

1шт.

8

87452550

PIPE

poly 1" x 94 1/2" long 5 hole

1шт.

80', 90', 100' Models

1шт.

8

87624385

PIPE

poly 1" x 93" long 5 hole

1шт.

120', 126', 134' Models

1шт.

9

87452551

PIPE

poly 1" x 110 1/2" long 6 hole

1шт.

10

87452552

PIPE

poly 1" x 133 1/2" long 7 hole

1шт.

11

87452553

PIPE

poly 1" x 170 1/2" long 9 hole

1шт.

100

87504804

TAPE

Teflon gas yellow 1/2" x 40' roll

1шт.

Not Shown

1шт.
