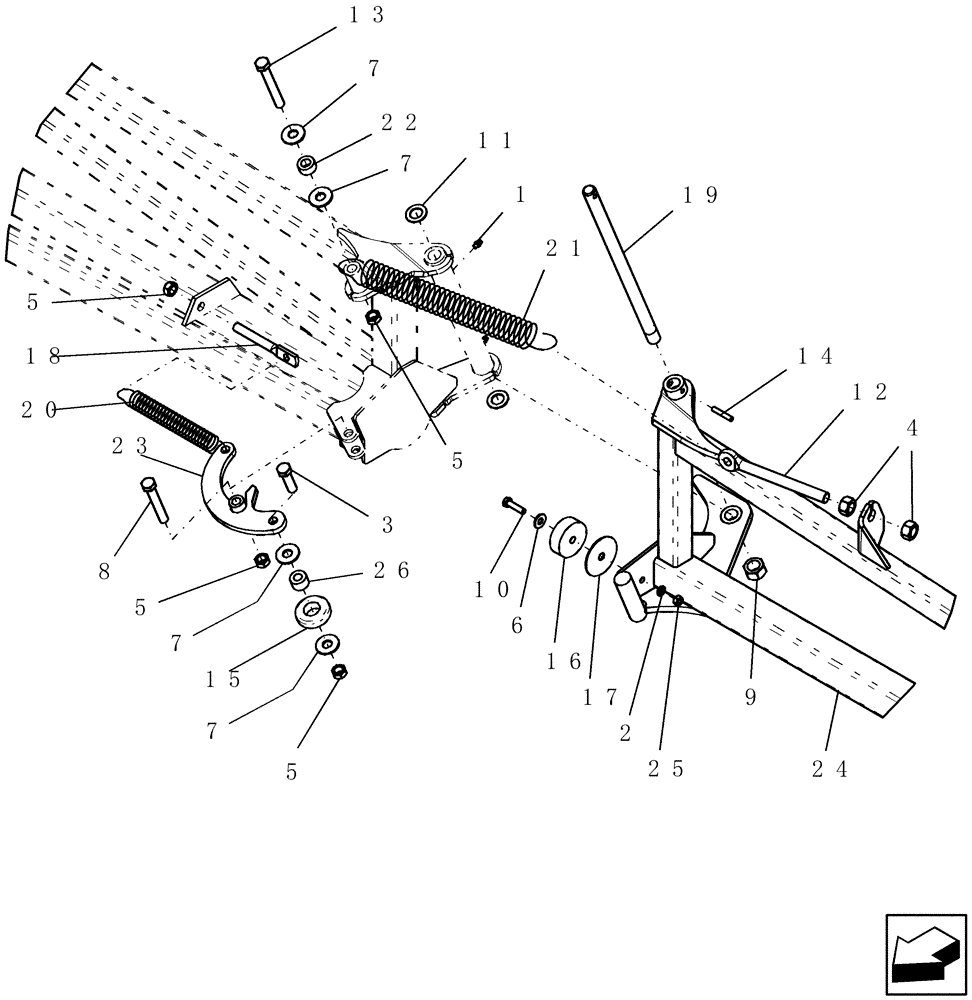

Запчасти Case IH 100 (39.100.17) - SUSPENDED BOOM - BREAKAWAY BOOM ASSEMBLY (39) - FRAMES AND BALLASTING

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

80681

LOCK WASHER,5/16"

1шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

8

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

9

280375

NUT,3/4"-10, GC

1шт.

10

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

11

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

2шт.

12

4269

EYEBOLT

5/8"-11x 7 3/8"

1шт.

13

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

14

9632

ROLL PIN

1/4" x 1 1/2"

1шт.

15

9828

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25 mm x 52 mm x 15 mm wide

1шт.

16

22488

STOP

puck - 2 1/4" od x 13/32" id x 3/4"

1шт.

17

22495

WASHER

7/16" id 2 1/2" 14ga

1шт.

18

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

1шт.

19

87449761

PIN

19.1 mm x 366 mm long

1шт.

20

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

21

87506249

SPRING

19/64" wire x 1 61/64" od x 13" long

1шт.

22

SR-141

SPACER

shock absorber

1шт.

23

87501465

LEVER

breakaway latch

1шт.

24

87443369

BOOM

breakaway LH

1шт.

Shown

1шт.

24

87502055

BOOM

breakaway RH

1шт.

Not Shown

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

1шт.

26

SR-189

BUSHING

breakaway latch

1шт.
