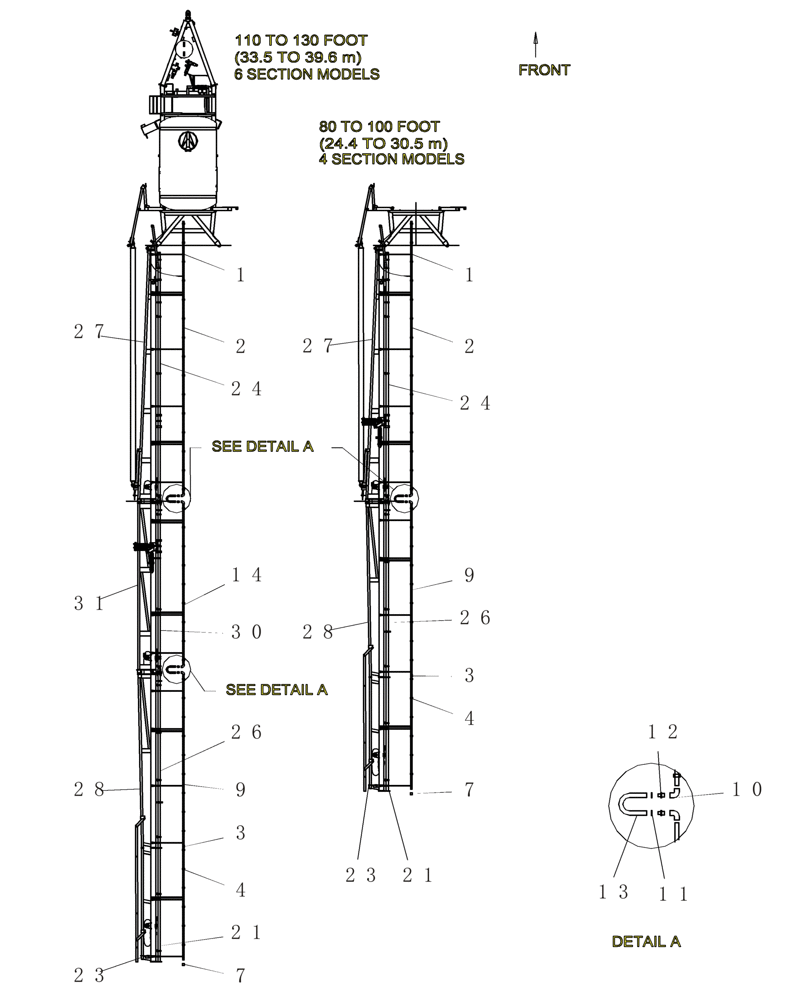

Запчасти Case IH 100 (39.100.12) - WHEELED BOOM - WING BOOM LAYOUTS (39) - FRAMES AND BALLASTING

1

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20" Spacing

1шт.

Cut to 58"

1шт.

1

21725

PIPE

Stainless Steel 1" x 56-1/2" 3 3/8" Holes 20" Spacing

1шт.

2

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20" Spacing

1шт.

Cut to 227"

1шт.

2

21724

PIPE

Stainless Steel 1" x 227" 12 3/8" Holes 20" Spacing

1шт.

3

87558397

COUPLING,1" Poly Pipe Coupling

poly coupler 1fp

1шт.

4

21720

PIPE

Stainless Steel 1" x 19-1/2" 1 3/8" Hole

1шт.

4

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20" Spacing

1шт.

Cut to 59 1/2"

1шт.

4

21721

PIPE

Stainless Steel 1" x 59-1/2" 3 3/8" Holes 20" Spacing

1шт.

4

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20" Spacing

1шт.

Cut to 119 1/2"

1шт.

4

21722

PIPE

Stainless Steel 1" x 119-1/2" 6 3/8" Holes 20" Spacing

1шт.

7

87577690

CAP,1" Cap

fit poly 1" fp

1шт.

9

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

20" Spacing

1шт.

Cut to 179 1/2"

1шт.

9

21728

PIPE

Stainless Steel 1" x 179-1/2" 9 3/8" Holes 20" Spacing

1шт.

10

6758

ELBOW

fitting, poly 90º 1"fp 1"fp

1шт.

11

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

12

6754

FITTING

poly straight adapter 1" mp 1" hb

1шт.

13

SP-062

HOSE,1.00" x 30.00"

1шт.

14

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

Cut to 167"

1шт.

20" Spacing

1шт.

14

21723

PIPE

Stainless Steel 1" x 167" 9 3/8" Holes 20" Spacing

1шт.

21

SQ-630

FRAME

wing 2'

1шт.

21

SQ-631

FRAME

wing 5'

1шт.

21

SQ-632

FRAME

wing 10'

1шт.

23

SQ-620

BOOM EXTENSION

primary wing, 2'

1шт.

23

SQ-621

BOOM EXTENSION

primary wing, 5'

1шт.

23

SQ-622V2

BOOM EXTENSION

primary wing, 10'

1шт.

24

SQ-634

BOOM

Secondary Wing, Inner Boom, Spray Pipe Holder

1шт.

26

SQ-638

BOOM

Secondary Wing, Outer Boom, Spray Pipe Holder

1шт.

27

SQ-624V2

BOOM

primary wing, inner LH

1шт.

27

SQ-625V2

BOOM

primary wing, inner RH

1шт.

28

SQ-628

BOOM

primary wing, outer

1шт.

30

SQ-633

BOOM

Secondary Wing, Middle Boom, Spray Pipe Holder

1шт.

31

SQ-623V2

BOOM

primary wing, middle

1шт.

100

21716K

KIT

pipe Stainless Steel 1" x 10' 6 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

Includes two 21721

1шт.

100

21717K

KIT

pipe Stainless Steel 1" x 20' 12 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

Includes two 21722

1шт.

100

21718K

KIT

pipe Stainless Steel 1" x 80' 24 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

Includes two 21724, two 21725 and two 21728

1шт.

100

21719K

KIT

pipe Stainless Steel 1" x 30' 18 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

Includes two 21723

1шт.

100

21727K

KIT

pipe Stainless Steel 1" x 4' 2 3/8" Holes 20" Spacing

1шт.

Not Shown

1шт.

Includes 21720

1шт.

100

SQ-935K

KIT

sprayboom clamp

1шт.

Not Shown

1шт.

Includes two SP-940, two SP-136, two SQ-935, four 4597, four 2023, two 1488, two 1549, two 1507, four 1507 and SQ-014v1

1шт.

100

SQ-935

CLAMP

spray boom

1шт.

Not Shown

1шт.
