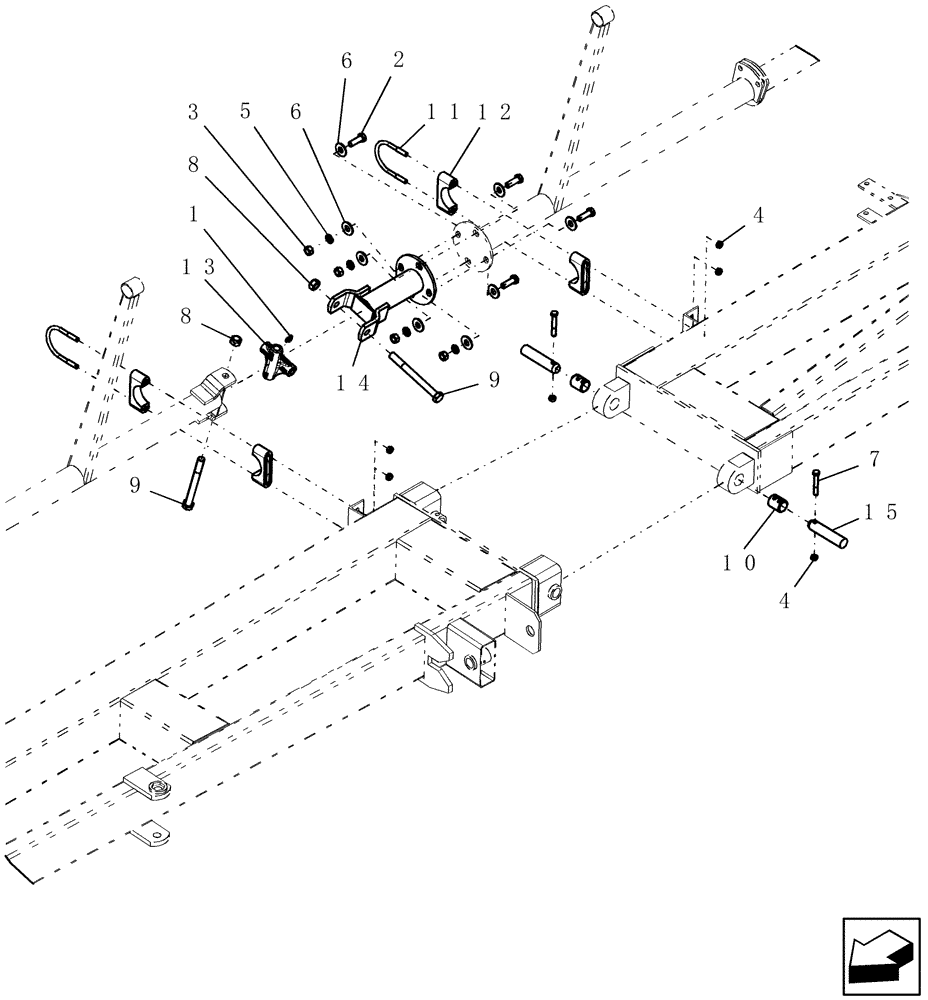

Запчасти Case IH 100 (39.100.10) - WHEELED BOOM - PRIMARY AND SECONDARY JOINT ASSEMBLY (39) - FRAMES AND BALLASTING

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

3

280431

NUT,1/2"-13, G5

4шт.

4

88902

NUT,3/8"-16

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

7

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

2шт.

10

4686

BUSHING

tension 1 1/4" x 1 x 1 1/2" long

2шт.

11

87577724

U-BOLT

ur 3/8" 2 7/8" w 3 7/8" d 1 1/4" thread

2шт.

12

87558400

HALF-BUSHING

molded 2 3/8" id

4шт.

13

SQ-635

UNIVERSAL JOINT

secondary

1шт.

14

SQ-637

ADJUSTER

secondary boom

1шт.

15

SQ-649

PIVOT PIN,25.4mm OD x 115.89mm L

1" x 4 9/16"

2шт.
