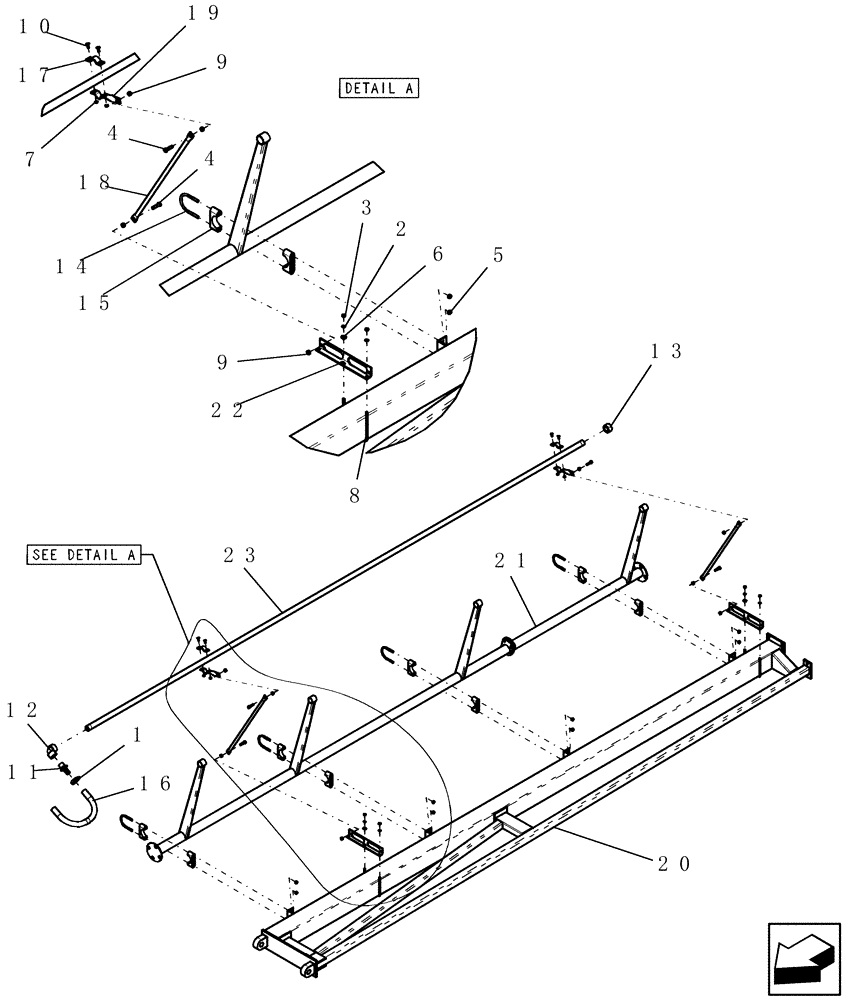

Запчасти Case IH 100 (39.100.09) - WHEELED BOOM - 80 TO 130 OUTER BOOM ASSEMBLY (39) - FRAMES AND BALLASTING

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

2

80681

LOCK WASHER,5/16"

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

88902

NUT,3/8"-16

8шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

280129

NUT,1/4"-20

4шт.

8

21331

U-BOLT

us 5/16" x 5 3/8" w x 5 3/4" d 3/4" thread

2шт.

9

9628503

NUT,3/8"-16, G5

8шт.

10

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

4шт.

11

6754

FITTING

poly straight adapter 1" mp 1" hb

1шт.

12

6758

ELBOW

fitting, poly 90º 1"fp 1"fp

1шт.

13

87577690

CAP,1" Cap

fit poly 1" fp

1шт.

14

87577724

U-BOLT

ur 3/8" 2 7/8" w 3 7/8" d 1 1/4" thread

4шт.

15

87558400

HALF-BUSHING

molded 2 3/8" id

8шт.

16

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 30"

1шт.

17

SP-136

CLAMP

sprayboom

2шт.

18

SP-911

LINK

sprayboom control 27"

2шт.

19

SP-940

LINK

sprayboom clamp

2шт.

20

SQ-628

BOOM

primary wing, outer

1шт.

21

SQ-638

BOOM

Secondary Wing, Outer Boom, Spray Pipe Holder

1шт.

22

SQ-647

BRACKET

control link - secondary boom

2шт.

23

21728

PIPE

Stainless Steel 1" x 179-1/2" 9 3/8" Holes 20" Spacing

1шт.

23

6001V2

BOOM

spray 1" pvc x 20' 3/8" holes

1шт.

Cut to 179"

1шт.
