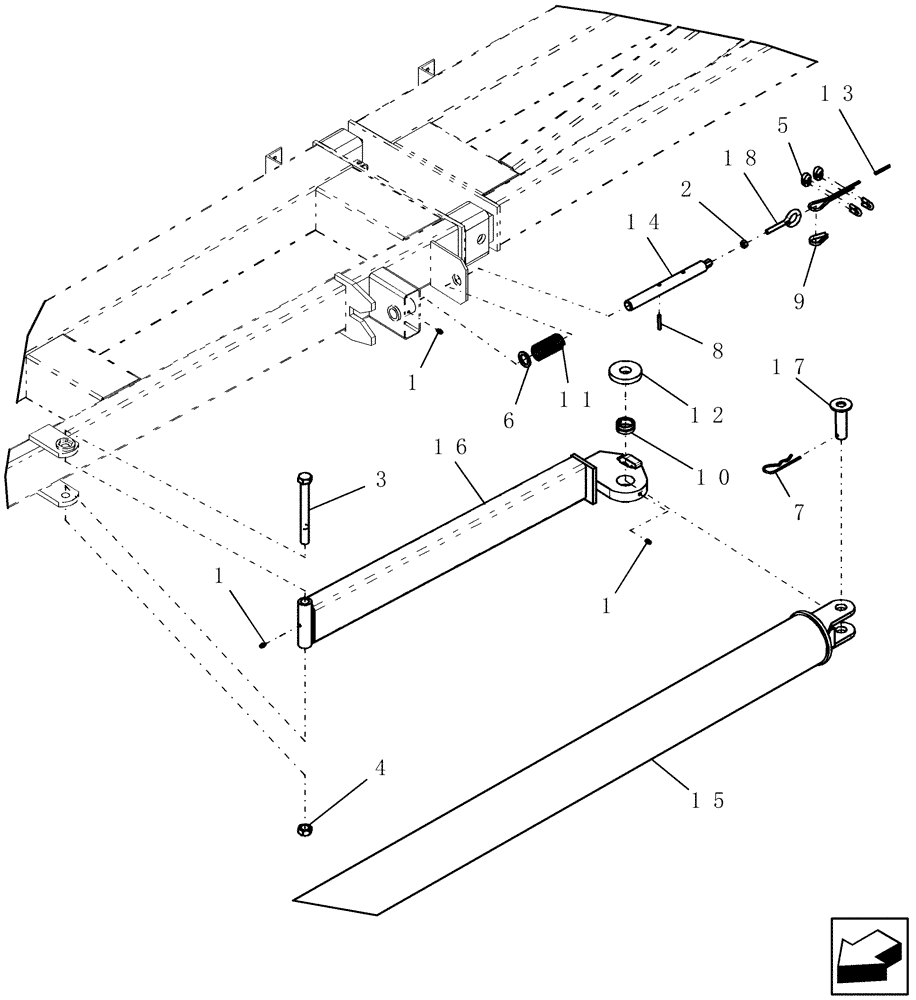

Запчасти Case IH 100 (39.100.07) - WHEELED BOOM - DRAW BOOM ASSEMBLY - 4 AND 6 SECTION (39) - FRAMES AND BALLASTING

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

9628503

NUT,3/8"-16, G5

1шт.

3

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

4

280375

NUT,3/4"-10, GC

1шт.

5

432641A1

CLAMP

cable 3/16" wire rope

2шт.

6

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

7

87045537

HAIR PIN COTTER

.148 x 3 5/16"

1шт.

8

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

9

87577687

EYELET

cable thimble 3/16"

1шт.

10

84336224

GROOVED BUSHING

Spherical 1 5/8" od x 1" id

1шт.

11

87506237

COMPRESSION SPRING

13/64" wire 1 15/32" od x 5 19/32" long

1шт.

12

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

1шт.

13

SQ-679

CABLE

3/16" x 400"

1шт.

14

SQ-165

PIN

trip breakaway

1шт.

15

SQ-667

TUBE,3448.4 mm L

draw, 5"

1шт.

16

SQ-668

ARM

breakaway extension

1шт.

17

SQ-670

PIN

1" x 3 1/2"

1шт.

18

SQ-745

EYEBOLT

3/8" x 4"

1шт.
