Запчасти Case IH 100 (35.359.01) - HYDRAULIC - SUSPENDED BOOM - BLOCK ASSEMBLY (35) - HYDRAULIC SYSTEMS

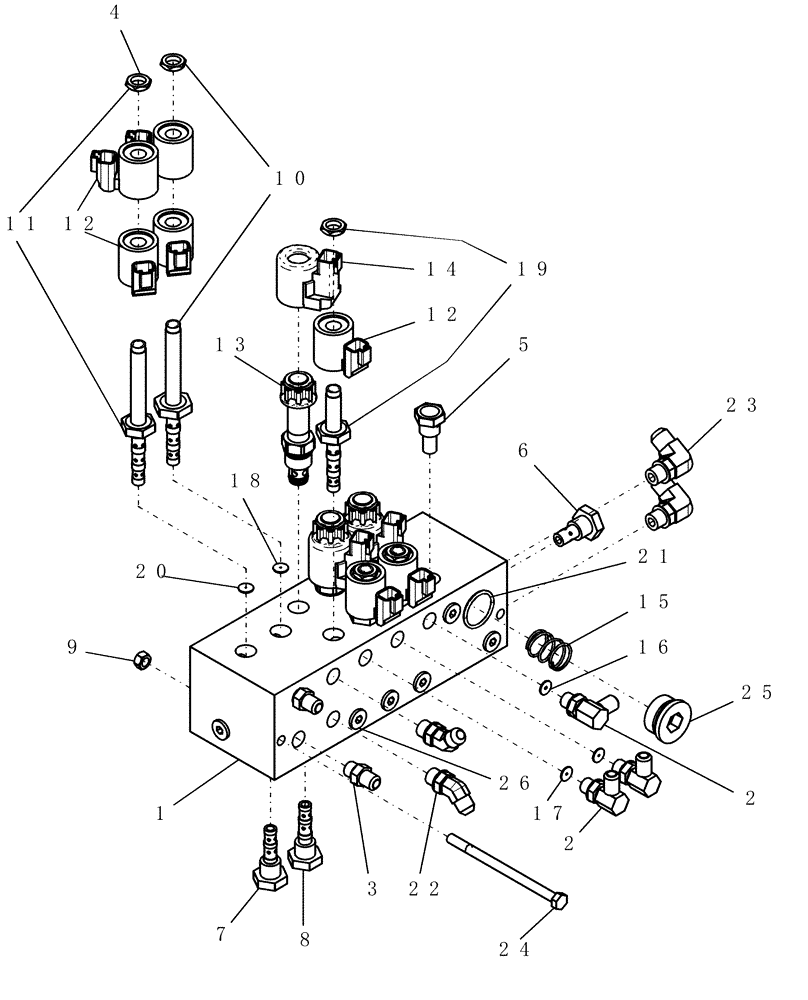

Схема запчастей Case IH 100 - (35.359.01) - HYDRAULIC - SUSPENDED BOOM - BLOCK ASSEMBLY (35) - HYDRAULIC SYSTEMS
12
25
16
17
4
20
6
23
8
5
18
7
13
12
26
3
2
24
22
2
1
11
9
14
19
10
21
15

Артикул

Название

Примечание

Количество

1

87501599

MANIFOLD

hyd valve 5 station with filter

1шт.

Complete manifold includes all items

1шт.

2

9077

ELBOW

fitting, hydraulic 90º 3/8" mb 3/8" mj

3шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

4

87577862

JAM NUT

jam 1/2"-20 11/64" thk solenoid coil keeper

5шт.

5

87577855

CARTRIDGE

valve hyd cavity plug cp10-20

1шт.

6

87577856

CARTRIDGE

valve hyd check valve cv10-20

1шт.

7

23453

CARTRIDGE

hyd valve pilot check

1шт.

8

87577857

CARTRIDGE

valve hyd dbl pilot chk 203169

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

1шт.

10

87555832

SPOOL

valve hyd cart sv08-47d

1шт.

11

87555834

SPOOL

valve hyd cart sv08-47c

1шт.

12

87555835

COIL

solenoid 12v hydraforce

7шт.

13

87555836

POPPET

valve hyd cart ws08w

3шт.

14

87555837

COIL

solenoid 12v hydac

3шт.

15

87555839

SPRING KIT

filter sk9052t

1шт.

16

87555840

ORIFICE

disc 1/2"od x 3/32"

1шт.

17

87555841

ORIFICE

disc 1/2"od x 1/16"

2шт.

18

87555842

ORIFICE

disc 1/2"od x 1/32"

1шт.

19

87574447

POPPET

valve hyd cart sv08-20

3шт.

20

87574693

ORIFICE

disc 1/2" od x 1/32"

1шт.

21

87555838

ELEMENT

filter w seal ek9052

1шт.

22

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

23

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

2шт.

24

88575

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

25

87363628

PLUG,1 - 5/16" - 12

fitting stl 1"mb skt hex

1шт.

26

9625178

PLUG,9/16" - 18 ORB

8шт.

Выбрано товаров: 27
