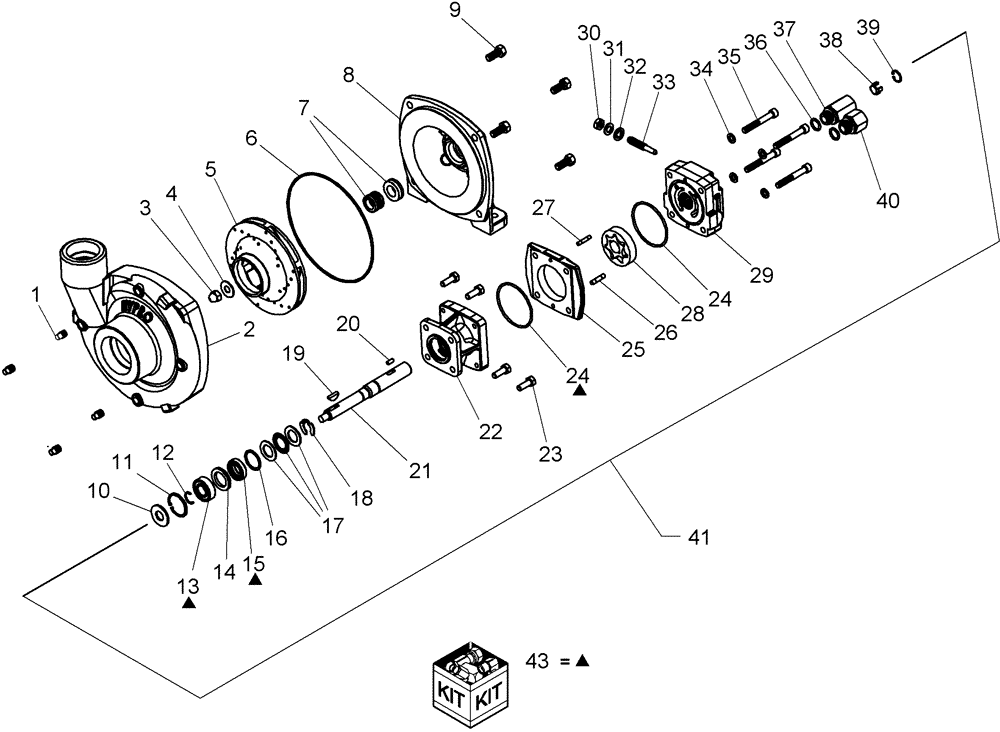

Запчасти Case IH 100 (35.220.05) - PUMP - ASSEMBLY, HYDRAULIC CENTRIFUGAL DETAIL (HYPRO 9306C-HM1C) (35) - HYDRAULIC SYSTEMS

0

87610347

HYDRAULIC PUMP

centri 9306c-hm1c

1шт.

1

4187

DRAIN PLUG

2шт.

2

87610599

CASING

pump, hydraulic centri 9306c

1шт.

3

4199

NUT

Impeller

1шт.

4

84272048

WASHER

WASHER

1шт.

5

87610600

IMPELLER

pump centri 9306c

1шт.

6

87577652

O-RING

pump centri

1шт.

7

87525032

SEAL

pump centrifugal sil carbide

1шт.

8

4192

FLANGE

mount, Hypro* pump 9303c

1шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

10

4194

RING

slinger

1шт.

11

BN98259

RING

1шт.

12

6057

SNAP RING

1шт.

13

NSS

NOT SOLD SEPARAT

PUMP CENTRI HYD BRG & SEAL

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL SPACER

1шт.

17

87577677

BEARING ASSY

pump centri hyd

1шт.

18

87578620

SNAP RING

pump hyd motor side, Hypro #9303c

1шт.

19

6059

KEY

Hypro* motor woodruff

1шт.

20

6060

ROLL PIN

1шт.

21

87577679

SHAFT

pump hyd motor hm1

1шт.

22

9569

BODY

front Hypro* motor

1шт.

23

84270018

BOLT

HEX HEAD 5/16" - 18 x 7/8"

4шт.

24

NSS

NOT SOLD SEPARAT

O-RING

2шт.

25

9577

HOUSING

gerotor - hm1c Hypro* motor

1шт.

26

NSS

NOT SOLD SEPARAT

LOCATING PIN

2шт.

27

NSS

NOT SOLD SEPARAT

LOCATING PIN

2шт.

28

87577681

GEROTOR

pump hyd motor hm1

1шт.

29

9572

END PLATE

Hypro* motor

1шт.

30

NSS

NOT SOLD SEPARAT

LOCK NUT

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER

1шт.

32

84270031

WASHER

STATO SEAL GASKET

1шт.

33

87577683

VALVE STEM

pump hyd motor bypass adj

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER

4шт.

35

NSS

NOT SOLD SEPARAT

CAP SCREW

4шт.

36

24211

O-RING

41/64" id 5/64" thick

1шт.

37

24212

VALVE BODY

check

1шт.

37

87577815

VALVE POPPET

check Hypro part # 3260-0039

1шт.

37

24214

RETAINER

check valve

1шт.

38

NSS

NOT SOLD SEPARAT

POPPET

1шт.

39

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

40

NSS

NOT SOLD SEPARAT

PRESSURE PORT ADAPTER

1шт.

41

9578

HYDRAULIC MOTOR

Hypro* hm1c pump

1шт.

42

BN53769

REPAIR KIT

Gerotor Kit, Includes Ref 24 - 28

1шт.

43

84325648

SEAL KIT

pump centri hyd brg & seal Includes Ref 13 - 16, 24, and 32

1шт.

44

87265476

REPAIR KIT

Impeller Repair Kit, Includes Ref 6, 7

1шт.
