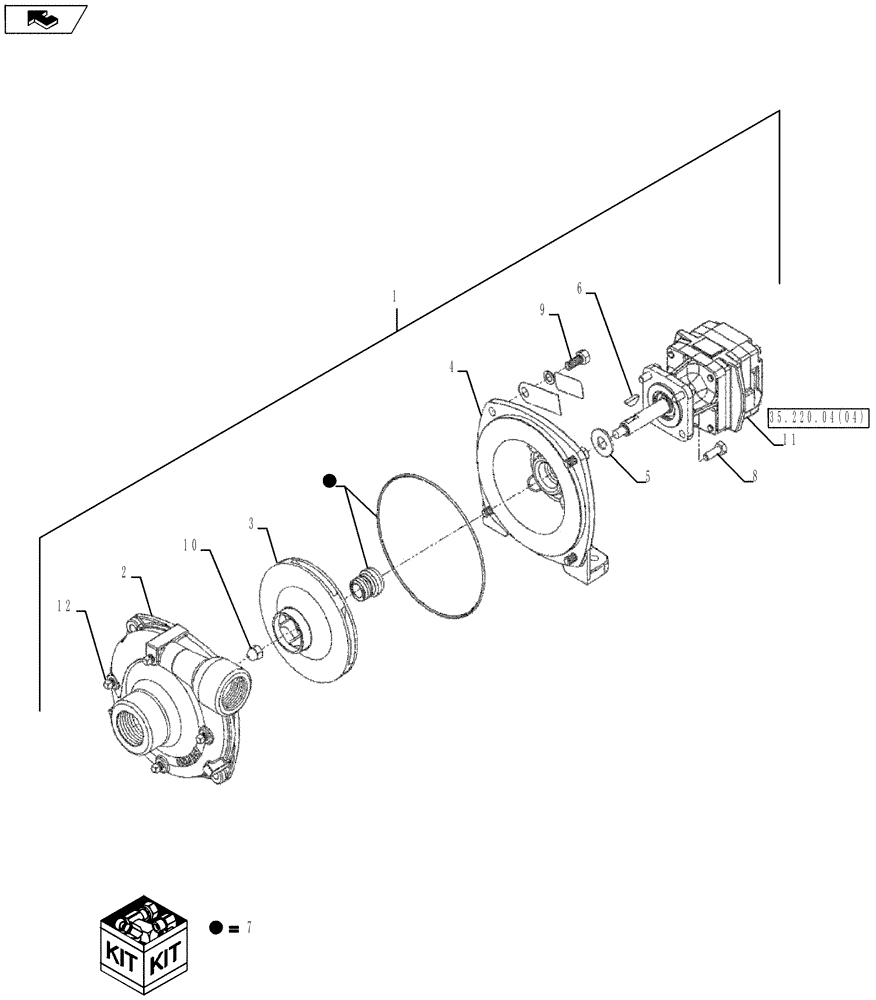

Запчасти Case IH 100 (35.220.04[03]) - PUMP - ASSEMBLY, HYDRAULIC CENTRIFUGAL (HYPRO - CAST) HM3C (35) - HYDRAULIC SYSTEMS

1

87524933

HYDRAULIC PUMP

HM3C

1шт.

2

87577653

CASING

1шт.

3

4198

IMPELLER

1шт.

4

4192

FLANGE

Mounting

1шт.

5

4194

RING

Slinger

1шт.

6

6059

KEY

Woodruff

1шт.

7

87265476

REPAIR KIT

Kit, Hypro Pump

1шт.

8

84270018

BOLT

Hex Head, 5/16" - 18 x 7/8"

4шт.

9

84270010

BOLT

Hex Head, 3/8" - 16 x 7/8"

4шт.

10

4199

NUT

Impeller

1шт.

11

9579

HYDRAULIC MOTOR

HM3

1шт.

Ref to Fig 35.220.04(04)

1шт.

12

4187

DRAIN PLUG

4шт.
