/ / / / / / / / (35.220.04[02]) - MOTOR - ASSEMBLY - HM1C

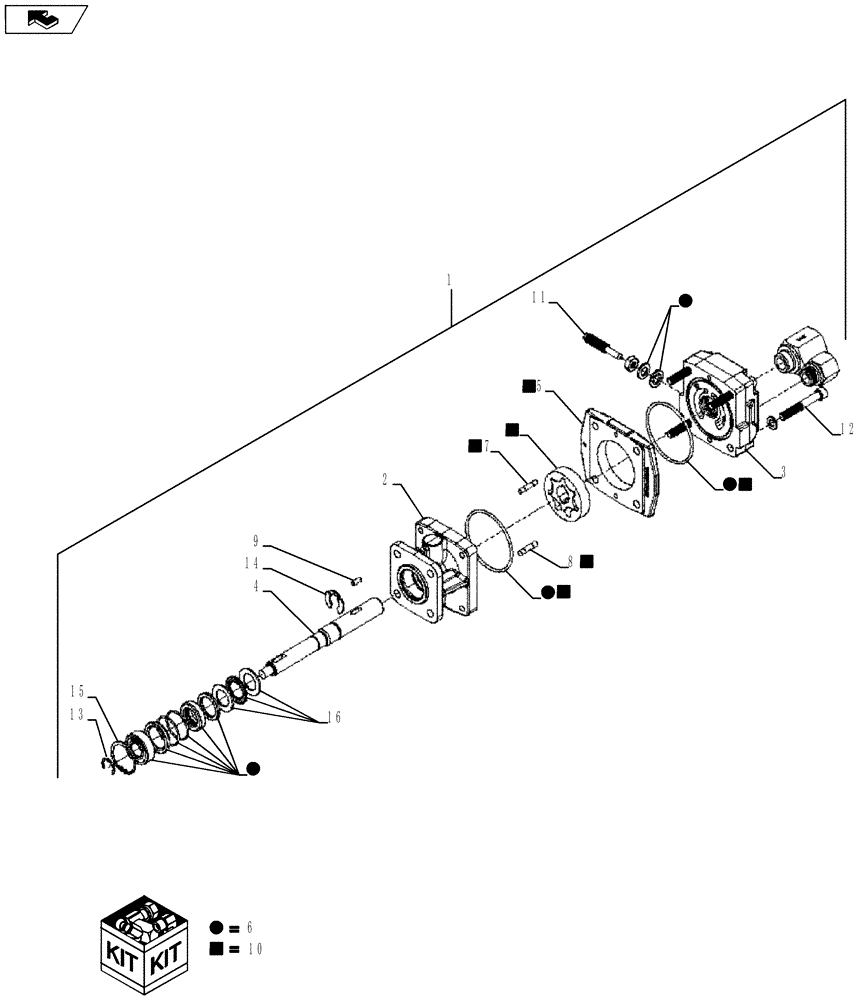

Запчасти Case IH 100 (35.220.04[02]) - MOTOR - ASSEMBLY - HM1C (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH 100 - (35.220.04[02]) - MOTOR - ASSEMBLY - HM1C (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/93706.png)
16
6
11
10
9
7
home
10
5
6
10
14
10
12
8
10
2
4
10
6
6
10
6
13
6
3
1
15
10
1
84347727
HYDRAULIC MOTOR
HM1
1шт.
2
84364089
BODY
1шт.
3
84364090
END PLATE
1шт.
4
84187261
SHAFT
Shaft
1шт.
5
9577
HOUSING
Gerotor Housing HM1
1шт.
6
84325648
SEAL KIT
Shaft
1шт.
7
84270023
PIN
1шт.
8
84270022
PIN
1шт.
9
84174347
PIN
Round Key
1шт.
10
BN53769
REPAIR KIT
Gerotor Kit
1шт.
11
87577683
VALVE STEM
Valve Stem
1шт.
12
84270031
WASHER
Flat 5/16"
4шт.
13
6057
SNAP RING
1шт.
14
87578620
SNAP RING
1шт.
15
BN98259
RING
Internal Retaining Ring
1шт.
16
87577677
BEARING ASSY
1шт.
