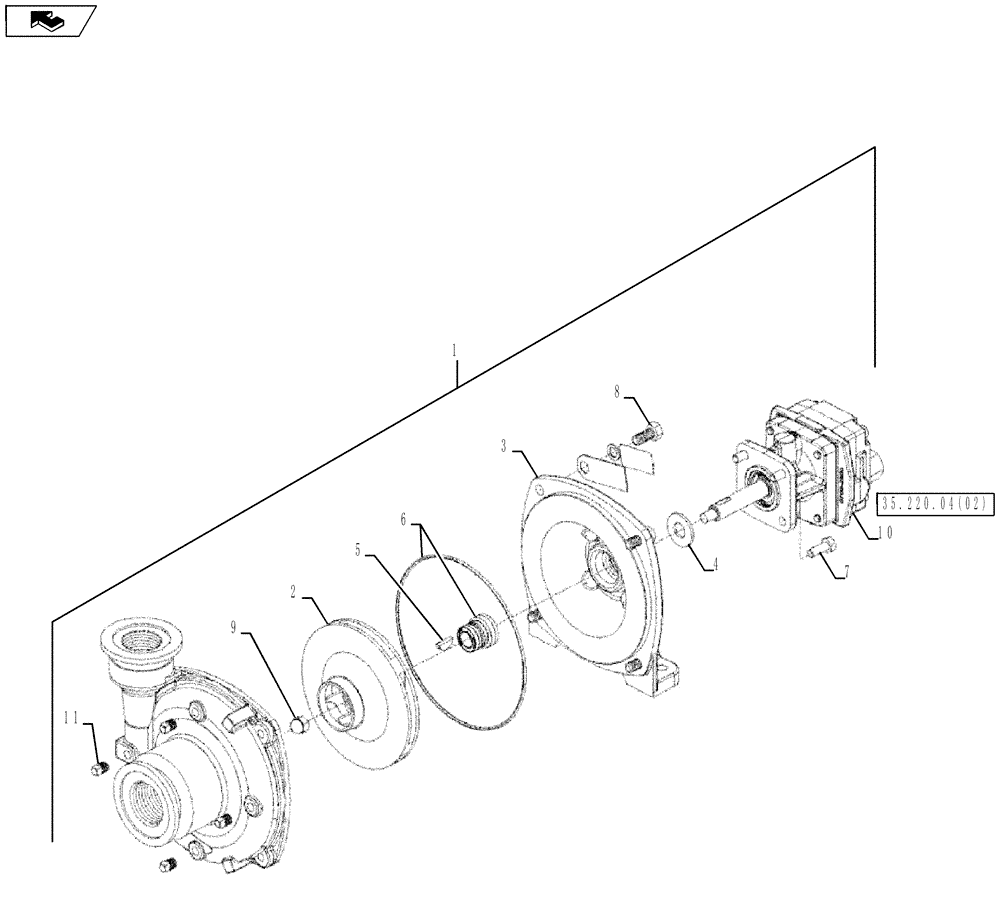

Запчасти Case IH 100 (35.220.04[01]) - PUMP - ASSEMBLY, HYDRAULIC CENTRIFUGAL (HYPRO - CAST) HM1C (35) - HYDRAULIC SYSTEMS

1

87502027

HYDRAULIC PUMP

centrifugal hm1c

1шт.

1

87502027R

REMAN-HYD PUMP

100, 160, Both PRECISION SPRAY FIELD SPRAYER, centrifugal hm1c (11/08-)

1шт.

1

87502027C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

4198

IMPELLER

1шт.

3

4192

FLANGE

Mounting

1шт.

4

4194

RING

Slinger

1шт.

5

6059

KEY

Woodruff

1шт.

6

87265476

REPAIR KIT

Kit, Hypro Pump

1шт.

7

84270018

BOLT

Hex Head, 5/16" - 18 x 7/8"

4шт.

8

84270010

BOLT

Hex Head, 3/8" - 16 x 7/8"

4шт.

9

4199

NUT

Impeller

1шт.

10

84347727

HYDRAULIC MOTOR

HM1

1шт.

Ref to Fig 35.220.04(02)

1шт.

11

4187

DRAIN PLUG

4шт.
