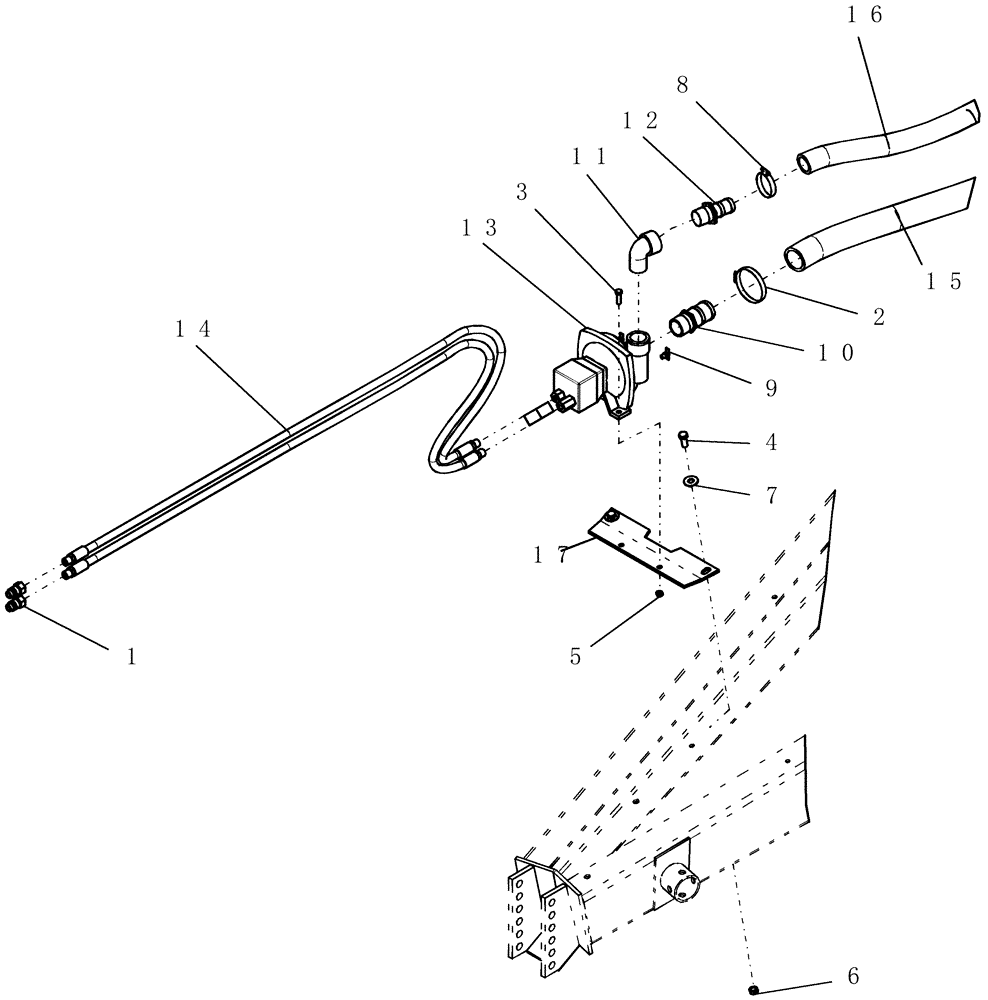

Запчасти Case IH 100 (35.220.03) - PUMP - ASSEMBLY, HYDRAULIC CENTRIFUGAL (HYPRO) (HM1C, HM3C) (35) - HYDRAULIC SYSTEMS

1

9412

QUICK MALE COUPLING

1/2"

2шт.

2

82012728

COLLAR,50mm - 65mm, Worm Gear

2шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

5

88902

NUT,3/8"-16

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

8

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

3шт.

9

217-81

VALVE

brass 1/8" mpt

2шт.

10

BN313927

FITTING

poly straight adapter 1 1/2" mp 2" hb

1шт.

10

7854

FITTING

poly - straight adapter

1шт.

Used on HM1C 9306C

1шт.

11

21739

ELBOW

fitting, poly 90º 1 1/4"mp 1 1/4" fp

1шт.

11

87419378

FITTING,1-1/2" Male Thread x 1-1/2" 90 Degree Hose Barb

1 1/2" mpt x 1 1/2" hb

1шт.

Used on HM1C 9306C

1шт.

12

21740

FITTING

poly straight adapter 1 1/4" mpt x 1 1/2" hb

1шт.

13

87524933

HYDRAULIC PUMP

centrifugal hm3c

7шт.

13

87502027

HYDRAULIC PUMP

centrifugal hm1c

1шт.

13

87502027R

REMAN-HYD PUMP

100, 160, Both PRECISION SPRAY FIELD SPRAYER, centrifugal hm1c (11/08-)

1шт.

13

87502027C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

87610347

HYDRAULIC PUMP

centri 9306c-hm1c

1шт.

14

22932

HYDRAULIC HOSE

1/2" x 91" fl, 1/2" mpt x 1/2" mpt

2шт.

Used on HM1C

1шт.

14

87525043

HYDRAULIC HOSE

3/4" x 108" fl, 1/2" mpt x 1/2" mpt

2шт.

Used on HM3C

1шт.

15

408352A1

HOSE

2" id wire suction

1шт.

Cut to 52"

1шт.

16

SQ-903

HOSE,1.50" ID x 33.00"

Water pressure

1шт.

16

22332

HOSE

1 1/2" x 2" br x 150 psi

33шт.

Cut to 33"

1шт.

17

87447138

PLATE

hydraulic pump mount

1шт.
