(35.116.05) - HYDRAULIC - SUSPENDED BOOM - 3 1/2" X 12" CYLINDER ASSEMBLY

Запчасти Case IH 100 (35.116.05) - HYDRAULIC - SUSPENDED BOOM - 3 1/2" X 12" CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

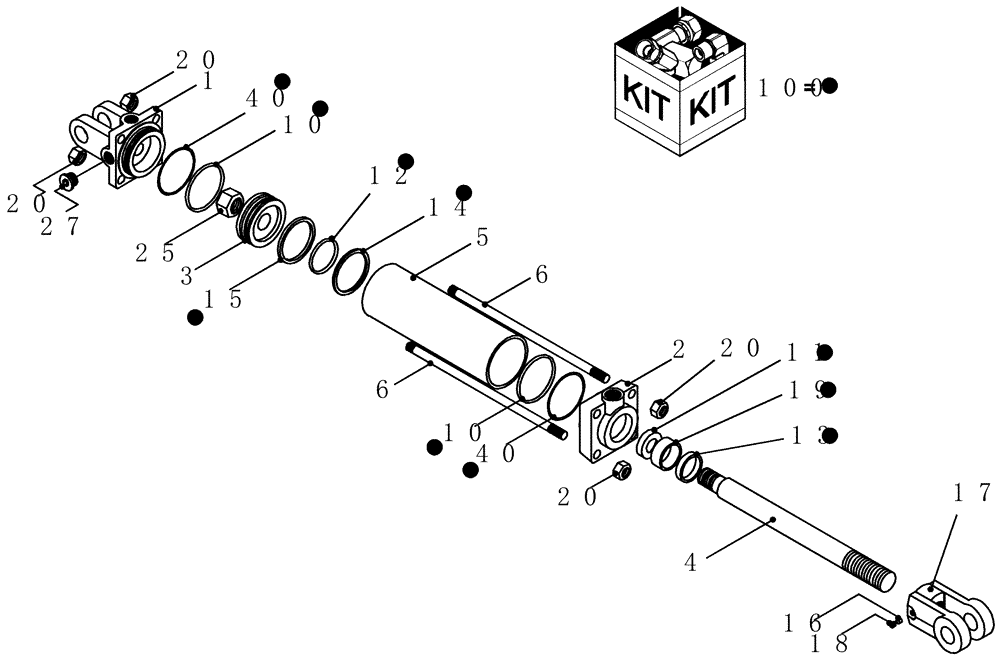

Схема запчастей Case IH 100 - (35.116.05) - HYDRAULIC - SUSPENDED BOOM - 3 1/2" X 12" CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
100
6
10
40
19
20
20
11
12
20
5
10
1
13
4
18
15
2
27
40
3
6
16
17
14
25
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87446383

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

3 1/2" x 12" Monarch 3000 psi

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409395

HEAD

cylinder front 3 1/2" bore x 1 1/4" rod

1шт.

3

84212859

PISTON

Cylinder 3 1/2" Monarch PSP

1шт.

4

22217

SHAFT

cylinder 1 1/4" rod 1 1/4" thread

1шт.

6

87548070

TIE-ROD

cylinder 5/8" x 17 3/64" Monarch

4шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87548059

SEAL KIT

hyd cyl 3 1/2" x 1 1/4"r

1шт.
