(35.116.01) - HYDRAULIC - SUSPENDED BOOM - 3" X 16" CYLINDER ASSEMBLY

Запчасти Case IH 100 (35.116.01) - HYDRAULIC - SUSPENDED BOOM - 3" X 16" CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

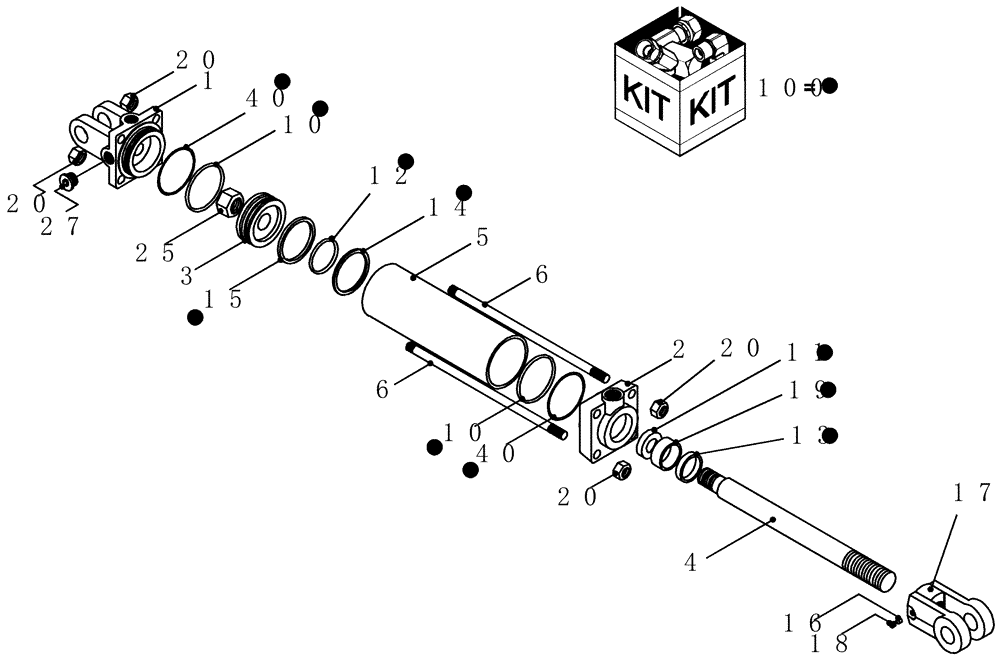

Схема запчастей Case IH 100 - (35.116.01) - HYDRAULIC - SUSPENDED BOOM - 3" X 16" CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS
11
12
14
5
18
6
3
27
16
1
10
4
15
19
20
2
20
13
17
40
10
25
20
6
40
100
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87446382

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16" Monarch 3000 psi

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

8952

CYLINDER END CAP

rod 3" Monarch

1шт.

3

87409478

PISTON

cylinder 3" bore Monarch #494734

1шт.

4

87548067

SHAFT

cylinder 1 1/2" x 20 57/64" mon chr

1шт.

5

1811

TUBE

cylinder, 3" x 16" Monarch

1шт.

6

87577798

THREADED TIE-ROD

cyl 3" & 4" x 16" Monarch 20 1/2" x 1/2"

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87548057

SEAL KIT

hyd cyl 3x1 1/2"r mon

1шт.
