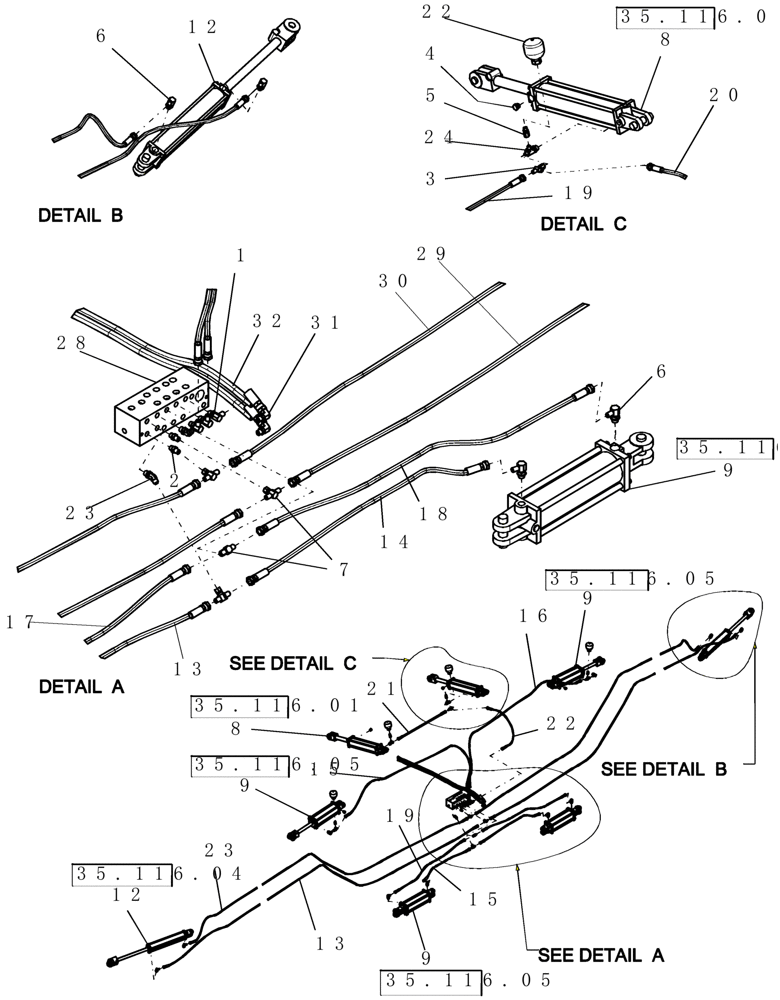

Запчасти Case IH 100 (35.100.01) - HYDRAULIC - SUSPENDED BOOM - 80 - 100 LAYOUT (35) - HYDRAULIC SYSTEMS

1

9077

ELBOW

fitting, hydraulic 90º 3/8" mb 3/8" mj

3шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

3

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3шт.

4

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

4шт.

5

22449

FITTING

hydraulic swivel adapter 3/8" mb 3/8" fjx

4шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

10шт.

7

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

8

87446382

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16" Monarch 3000 psi

2шт.

Refer to 35.116.01

1шт.

9

87446383

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

3 1/2" x 12" Monarch 3000 psi

4шт.

Refer to 35.116.05

1шт.

11

87501986

HYDRAULIC HOSE

1/4" x 310" fl, 3/8" fjic x 3/8" fjic

1шт.

12

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

2 1/2" x 16" Monarch 3000 psi 1 1/4" rod

2шт.

Refer to 35.116.04

1шт.

13

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

14

1254527C2

HYDRAULIC HOSE

1/4" x 37" fl

1шт.

15

1284366C1

HYDRAULIC HOSE

1/4" x 100" fl, 3/8" fjic x 3/8" fjic

1шт.

16

1284366C1

HYDRAULIC HOSE

1/4" x 100" fl, 3/8" fjic x 3/8" fjic

1шт.

17

129908C1

HYDRAULIC HOSE

1/4" x 55" fl, 7/8" fjic x 7/8" fjic

1шт.

18

129908C1

HYDRAULIC HOSE

1/4" x 55" fl, 7/8" fjic x 7/8" fjic

1шт.

19

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

20

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

21

356335A1

HYDRAULIC HOSE

1/4" x 295" fl, 3/8" fjic x 3/8" fjic

1шт.

22

344000A1

ACCUMULATOR

10 cu 1000 psi

4шт.

23

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

24

87564739

TEE

9/16"-18, 37º, 3/4"-16, O-Ring Run, 9/16"-18, 37º

2шт.

28

87501599

MANIFOLD

hyd valve 5 station with filter

1шт.

29

87501986

HYDRAULIC HOSE

1/4" x 310" fl, 3/8" fjic x 3/8" fjic

1шт.

30

356335A1

HYDRAULIC HOSE

1/4" x 295" fl, 3/8" fjic x 3/8" fjic

1шт.

31

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

2шт.

32

1017134

HYDRAULIC HOSE

1/2" x 377" fl

2шт.
