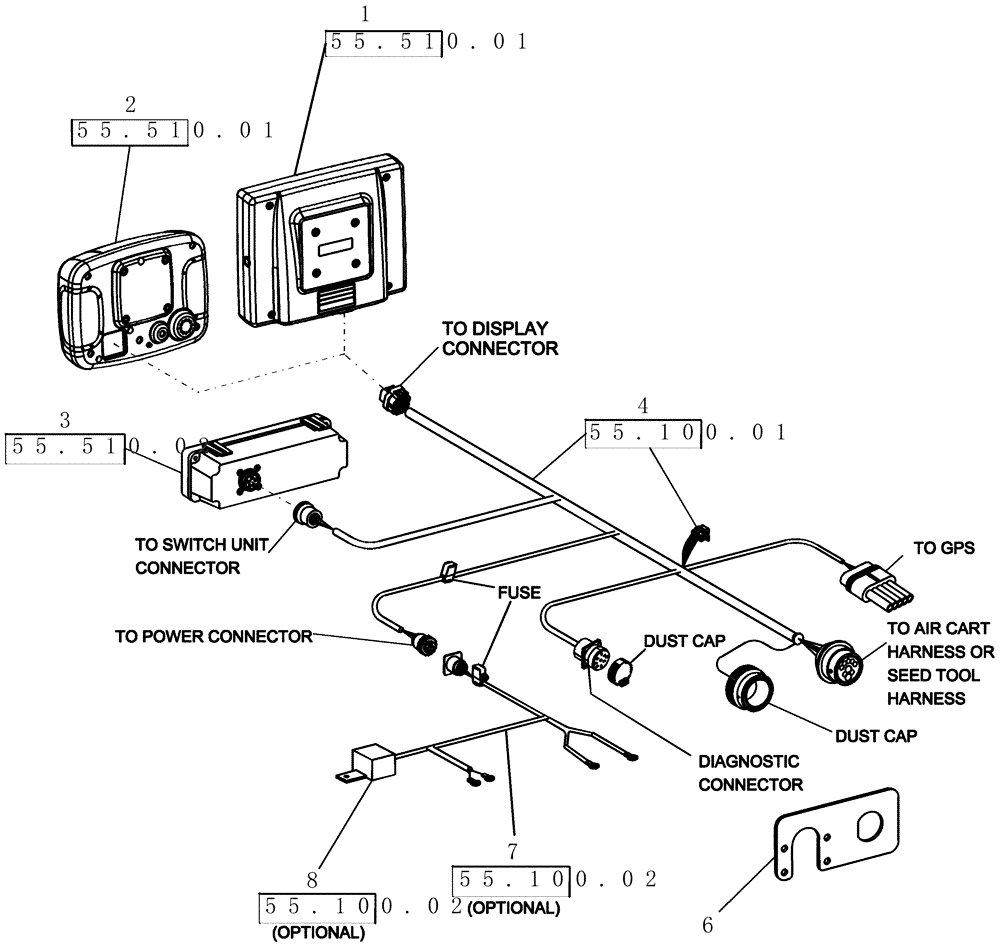

Запчасти Case IH 100 (00.100.03) - LAYOUT - DISPLAY MONITOR, SWITCH UNIT AND TRACTOR HARNESS (00) - GENERAL & PICTORIAL INDEX

1

87668610

DISPLAY

field service black, Years: -01-AUG-08

1шт.

Refer to 55.510.01

1шт.

1

87385125

DISPLAY

Pro 600, field service black, Years: 01-AUG-08-01-JUL-11

1шт.

1

87385125R

REMAN-ELECT MONITOR

REMAN-MONITOR 100 and 160 Precision Spray Field Sprayers

1шт.

1

87385125C

CORE-MONITOR

Return Part Number

1шт.

1

84604338R

REMAN-ELECT MONITOR

100, 160 Both(11.08), Reman For New PN 87385125

1шт.

1

84604338C

CORE-MONITOR

Return Part Number

1шт.

1

84180255

DISPLAY

Pro 700, Color Display, Start Year: 01-AUG-11

1шт.

2

87703363

CONTROL MONITOR

small wide configurable, Years: -01-FEB-10

1шт.

Refer to 55.510.01

1шт.

2

87703363R

REMAN-ELECT MONITOR

100, 160 Both (11/08-)

1шт.

2

87703363C

CORE-MONITOR

Return Part Number

1шт.

2

84240403

CONTROL MONITOR

Small Wide Configurable Display 1.5TS-CIH, Start Year: 01-FEB-10

1шт.

2

84486874R

REMAN-ELECT MONITOR

100, 160, Both (11/08-), Reman for New PN 84240403

1шт.

2

84486874C

CORE-MONITOR

Return Part Number

1шт.

3

87641709

SWITCH

Unit, Auxiliary Black

1шт.

Must be programmed.

1шт.

Refer to 55.510.02

1шт.

If drop shipping, make arrangements for programming.

1шт.

4

87532170

HARNESS

tractor 7.6 m

1шт.

Refer to 55.100.01

1шт.

6

GL-521

MOUNTING PARTS

implement receptacle

1шт.

7

14294

HARNESS

power adapter

1шт.

Refer to 55.100.02

1шт.

8

1983420C2

RELAY

12v 85 ohm c/w bracket

1шт.

Refer to 55.100.02

1шт.
