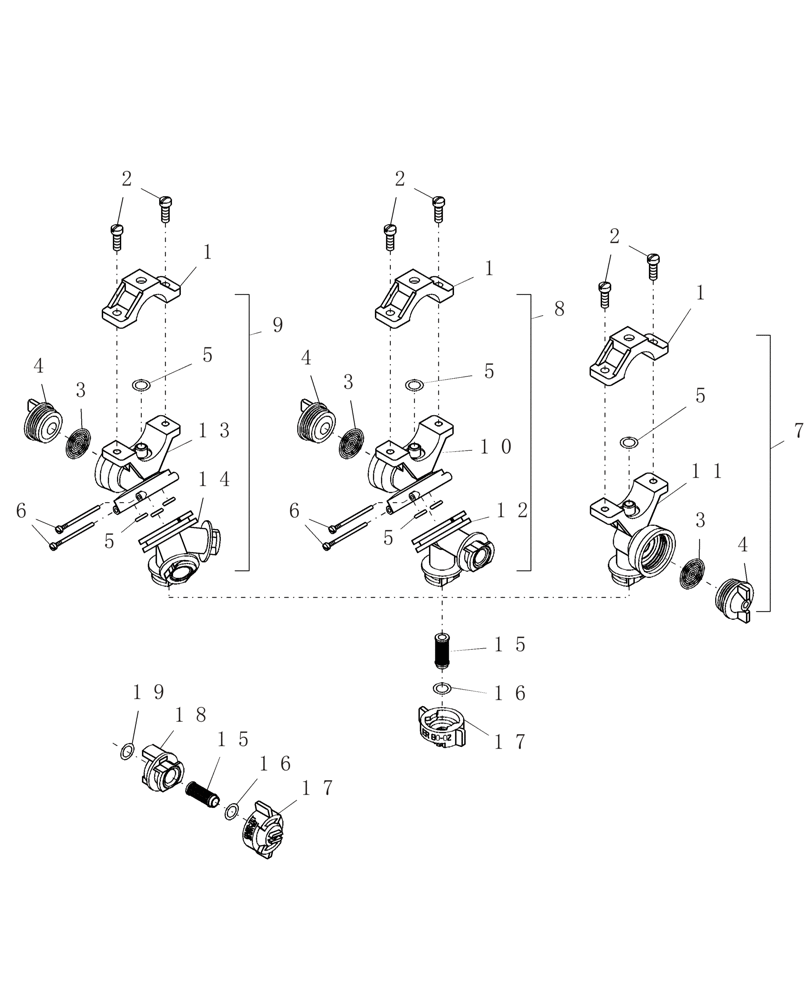

Запчасти Case IH 100 (75.130.06) - NOZZLE - ASSEMBLY, ER COMBO-JET (75) - SOIL PREPARATION

1

4636

CLAMP,1"

retainer nozzle body

1шт.

2

4637

SCREW

nozzle swivel mount

2шт.

3

4639

DIAPHRAGM

nozzle

1шт.

4

87501634

CHECK VALVE,10 PSI

nozzle, two piece design

1шт.

5

87324554

O-RING,0.375" ID x 0.094" Width

3/8" id 9/16" od 3/32" thick

1шт.

6

87564993

SCREW,Pan, #6 - 20 x 1.625mm

nozzle swivel mount

1шт.

7

87558399

BODY

nozzle assembly combo-jet single

1шт.

Includes 4636, 4637, 4639, 87501634, 4642, 8403 and 23231

1шт.

8

8401

BODY

nozzle assembly double

1шт.

Includes 4635, 4636, 4637, 4639, 87501634, 4641, 4642, 8404 and 23231

1шт.

9

8402

BODY

nozzle assembly triple

1шт.

Includes 4636, 4637, 4639, 87501634, 4641, 4642, 8405, 8406 and 23231

1шт.

10

4635

BODY

nozzle double

1шт.

9

8403

BODY

nozzle single

1шт.

12

87565160

BODY

nozzle swivel double

1шт.

13

8405

BODY

nozzle triple

1шт.

14

8406

BODY

nozzle swivel triple

1шт.

15

8407

FILTER STRAINER,Snap-In C/J, 100 Mesh Red

nozzle 100 mesh

1шт.

15

8409

FILTER STRAINER,Snap-In C/J, 50 Mesh Red

nozzle 50 mesh

1шт.

16

8408

O-RING,13 mm x 3 mm

nozzle seal combo-jet

1шт.

17

8410

CAP,Combo-Jet Tip/Cap Assy - ER110-01, Orange

nozzle tip er110-01 orange

1шт.

17

8411

CAP,Combo-Jet Tip/Cap Assy - ER110-015, Green

nozzle tip er110-015 green

1шт.

17

8412

CAP,Combo-Jet Tip/Cap Assy - ER110-02, Yellow

nozzle tip er110-02 yellow

1шт.

17

8413

CAP,Combo-Jet Tip/Cap Assy - ER110-03, Blue

nozzle tip er110-03 blue

1шт.

17

8414

CAP,Combo-Jet Tip/Cap Assy - ER110-04, Red

nozzle tip er110-04 red

1шт.

17

8479

CAP,Combo-Jet Tip/Cap Assy - ER110-05, Brown

nozzle tip er110-05 brown

1шт.

17

8480

CAP,Combo-Jet Tip/Cap Assy - ER110-06,Grey

nozzle tip er110-06 grey

1шт.

17

8415

CAP,Combo-Jet Tip/Cap Assy - ER80-01, Orange

nozzle tip er80-01 orange

1шт.

17

8416

CAP,Combo-Jet Tip/Cap Assy - ER80-015, Green

nozzle tip er80-015 green

1шт.

17

8417

CAP,Combo-Jet Tip/Cap Assy - ER80-02, Yellow

nozzle tip er80-02 yellow

1шт.

17

8418

CAP,Combo-Jet Tip/Cap Assy - ER80-03, Blue

nozzle tip er80-03 blue

1шт.

17

8419

CAP,Combo-Jet Tip/Cap Assy - ER80-04, Red

nozzle tip er80-04 red

1шт.

17

8477

CAP,Combo-Jet Tip/Cap Assy - ER80-05, Brown

nozzle tip er80-05 brown

1шт.

17

8478

CAP,Combo-Jet Tip/Cap Assy - ER80-06, Grey

nozzle tip er80-06 grey

1шт.

17

9176

CAP

nozzle tip - blank

1шт.

17

87558403

CAP

nozzle tip preorf dr80-01 cj

1шт.

17

23671

CAP,Dr Combo-Jet Tip/Cap Assy - Dr80-015, Green

nozzle tip dr80-015 green

1шт.

17

23672

CAP,Dr Combo-Jet Tip/Cap Assy - Dr80-02, Yellow

nozzle tip dr80-02 yellow

1шт.

17

23673

CAP,Dr Combo-Jet Tip/Cap Assy - Dr80-03, Blue

nozzle tip dr80-03 blue

1шт.

17

87577734

CAP,Dr Combo-Jet Tip/Cap Assy - Dr80-04, Red

noz tip preorf dr8004 cj drift reduction nozzle

1шт.

17

87577736

CAP,Noz Tip/Cap/Preorf Dr8005 Cj

noz tip preorf dr8005 cj drift reduction nozzle

1шт.

17

23676

CAP,Dr Combo-Jet Tip/Cap Assy - DR80-06, Grey

nozzle tip dr80-06 grey

1шт.

17

87502351

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-01, Orange

tip/cap/preo mr80-01

1шт.

17

87502352

NOZZLE

tip/cap/preo mr80-015

1шт.

17

87502353

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-02, Yellow

tip/cap/preo mr80-02

1шт.

17

87502354

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-03, Blue

tip/cap/preo mr80-03

1шт.

17

87502355

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-04, Red

tip/cap/preo mr80-04

1шт.

17

87502356

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-05, Brown

tip/cap/preo mr80-05

1шт.

17

87502357

NOZZLE,MR Combo-Jet Tip/Cap Assy - MR80-06, Grey

tip/cap/preo mr80-06

1шт.

18

8420

ADAPTER,Adapter Assy

teejet body to combojet tip/cap

1шт.

Includes 9168

1шт.

19

9168

O-RING

nozzle seal adapter c-j

1шт.

100

23231

ADAPTER,Adapter Assy

combojet body to teejet tip/cap

1шт.

Not Shown

1шт.
