Запчасти Case IH 100 (55.510.02) - ELECTRICAL - SWITCH UNIT (55) - ELECTRICAL SYSTEMS

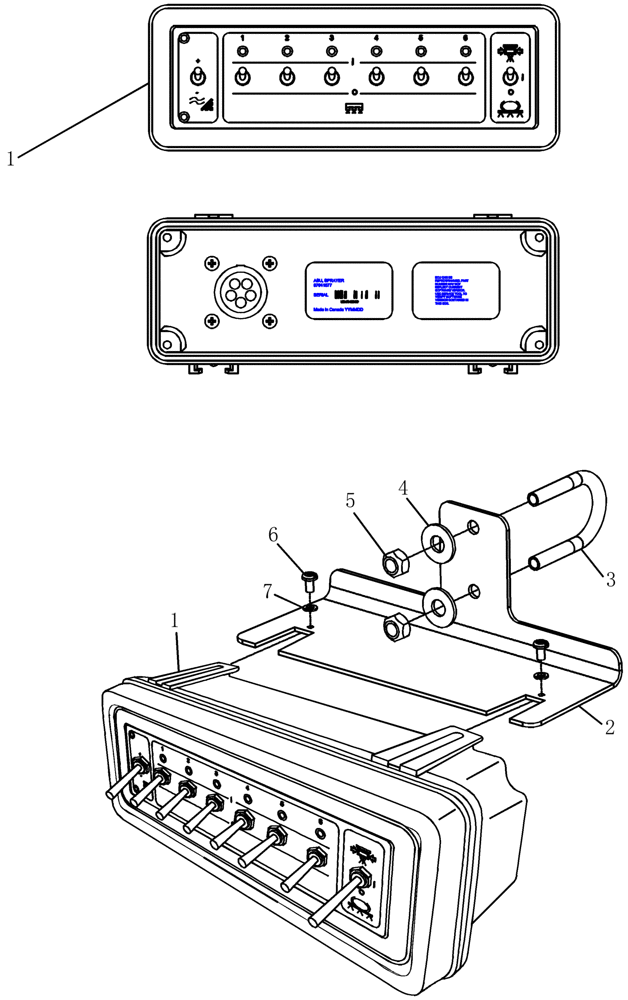

Схема запчастей Case IH 100 - (55.510.02) - ELECTRICAL - SWITCH UNIT (55) - ELECTRICAL SYSTEMS
4
5
1
2
7
6
3
1

Артикул

Название

Примечание

Количество

1

87641709

SWITCH

Unit, Auxiliary Black

1шт.

Must be programmed.

1шт.

If drop shipping, make arrangements for programming.

1шт.

2

87651139

BRACKET

switch mount

1шт.

3

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

1шт.

4

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

5

280129

NUT,1/4"-20

2шт.

6

84305559

SCREW,Pan, #6 - 32 x 1/4"

machine #6-32 x 1/4"

2шт.

7

87276

LOCK WASHER,3.58mm ID x 6.35mm OD x 0.79mm Thk

2шт.

Выбрано товаров: 9
