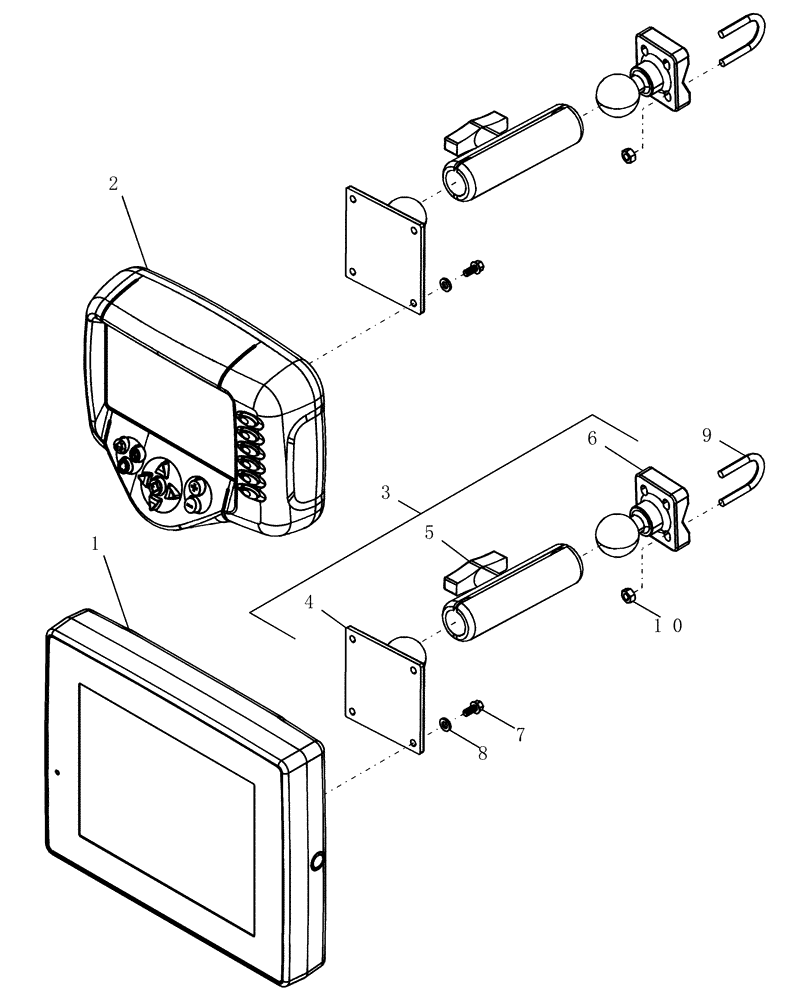

Запчасти Case IH 100 (55.510.01) - ELECTRICAL - DISPLAY MONITOR MOUNT (55) - ELECTRICAL SYSTEMS

1

87668610

DISPLAY

field service black, Years: -01-AUG-08

1шт.

Does not contain software. Software must be loaded before use.

1шт.

1

87385125

DISPLAY

Pro 600, field service black, Years: 01-AUG-08-01-JUL-11

1шт.

1

87385125R

REMAN-ELECT MONITOR

REMAN-MONITOR Display, AFS Pro 600

1шт.

1

87385125C

CORE-MONITOR

Return Part Number

1шт.

1

84604338R

REMAN-ELECT MONITOR

100, 160 Both(11/08), Reman For 87385125

1шт.

1

84604338C

CORE-MONITOR

Return Part Number

1шт.

1

84546676

DISPLAY

Pro 700, Color Display, Start Year: 01-AUG-11

1шт.

1

84546676R

REMAN-ELECT MONITOR

100, 160, BOTH (11/08-)

1шт.

1

84546676C

CORE-MONITOR

Return Part Number

1шт.

2

87703363

CONTROL MONITOR

small wide configurable, Years: -01-FEB-10

1шт.

Does not contain software. Software must be loaded before use.

1шт.

2

87703363R

REMAN-ELECT MONITOR

100, 160 BOTH (11/08-)

1шт.

2

87703363C

CORE-MONITOR

Return Part Number

1шт.

2

84240403

CONTROL MONITOR

Small Wide Configurable Display 1.5TS-CIH, Start Year: 01-FEB-10

1шт.

2

84486874R

REMAN-ELECT MONITOR

100, 160, Both (11/08-), Reman for New PN 84240403

1шт.

2

84486874C

CORE-MONITOR

Return Part Number

1шт.

3

87386396

MOUNT

Mount Color Display

1шт.

4

87386398

SUPPORTING ARM

Ram Square Mount, 75 x 75

1шт.

5

87284257

ARM

Supporting

1шт.

6

87284259

PLATE

Base, Double U-bolt

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

11

GL-521

MOUNTING PARTS

implement receptacle

1шт.

Not Shown

1шт.
