Запчасти Case IH 100 (55.424.01) - ELECTRICAL - SENSORS (55) - ELECTRICAL SYSTEMS

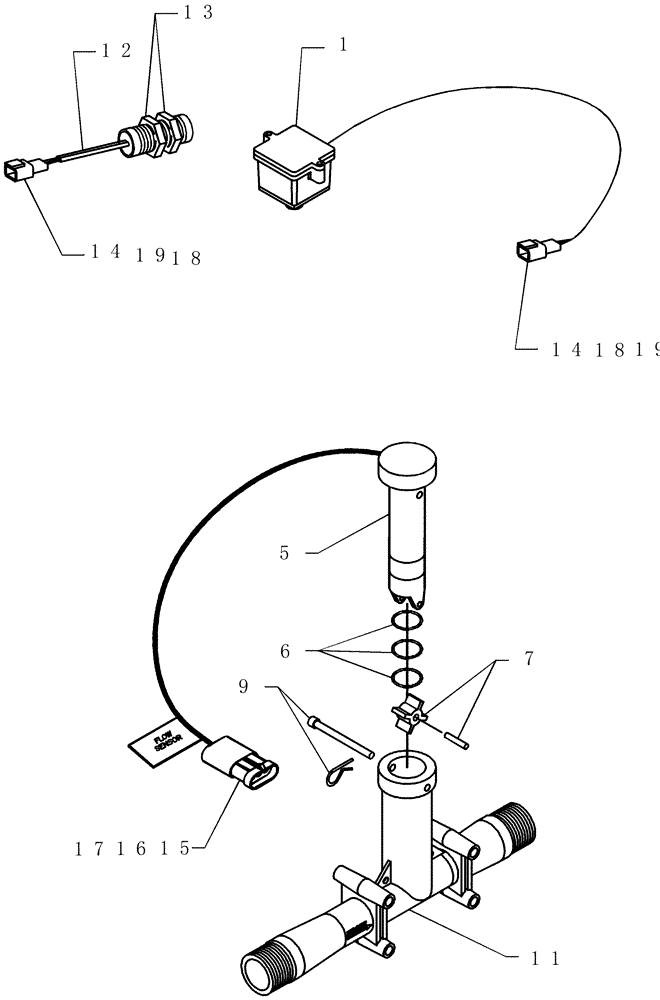

Схема запчастей Case IH 100 - (55.424.01) - ELECTRICAL - SENSORS (55) - ELECTRICAL SYSTEMS
14
17
6
19
5
18
7
13
15
18
19
14
16
9
11
12
1

Артикул

Название

Примечание

Количество

1

15263V3

SENSOR

pressure

1шт.

5

15577K

KIT

flow sensor replacement

1шт.

6

274727

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

3шт.

7

87577720

KIT

paddlewheel cast flow tee

1шт.

9

87578621

PIN

clevis 1 7/8" with hairpin

1шт.

11

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

Standard

1шт.

11

87577867

TEE

flow, 5 to 50 Imperial gpm, complete with pin and hairpin

1шт.

Optional

1шт.

12

13976

SENSOR

shaft, 3 Pin Male Packard, Used With Flex-Control

1шт.

13

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

14

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

15

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

16

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

3шт.

17

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

3шт.

18

280448A1

STOP LOCK

3c receptacle connector

1шт.

19

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

3шт.

Выбрано товаров: 17
