Запчасти Case IH 100 (55.100.23) - HARNESS - AGITATION SHUT OFF (55) - ELECTRICAL SYSTEMS

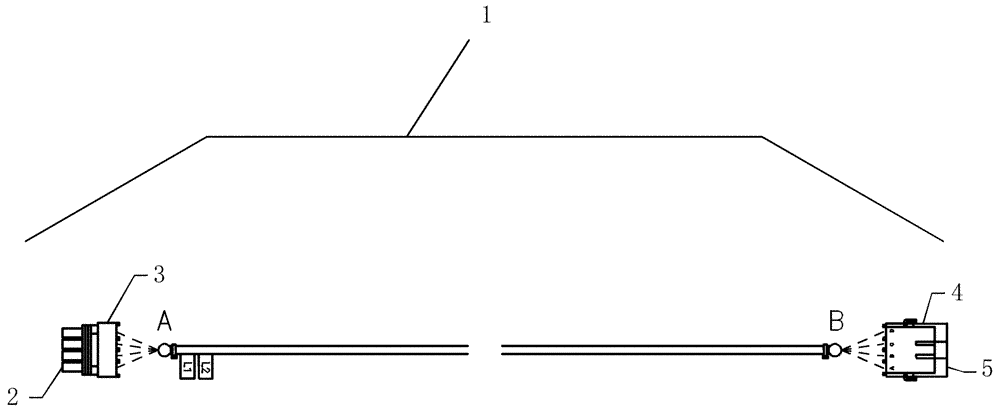

Схема запчастей Case IH 100 - (55.100.23) - HARNESS - AGITATION SHUT OFF (55) - ELECTRICAL SYSTEMS
4
5
1
2
3

Артикул

Название

Примечание

Количество

1

87641074

HARNESS

Agitation Shut Off

1шт.

2

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

1шт.

3

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

1шт.

4

245487C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

1шт.

Выбрано товаров: 5
