(29.218.AS[02.1]) - MOTOR CONTROL LINES, ASN YGT044000

Запчасти Case IH PATRIOT 4440 (29.218.AS[02.1]) - MOTOR CONTROL LINES, ASN YGT044000 (29) - HYDROSTATIC DRIVE

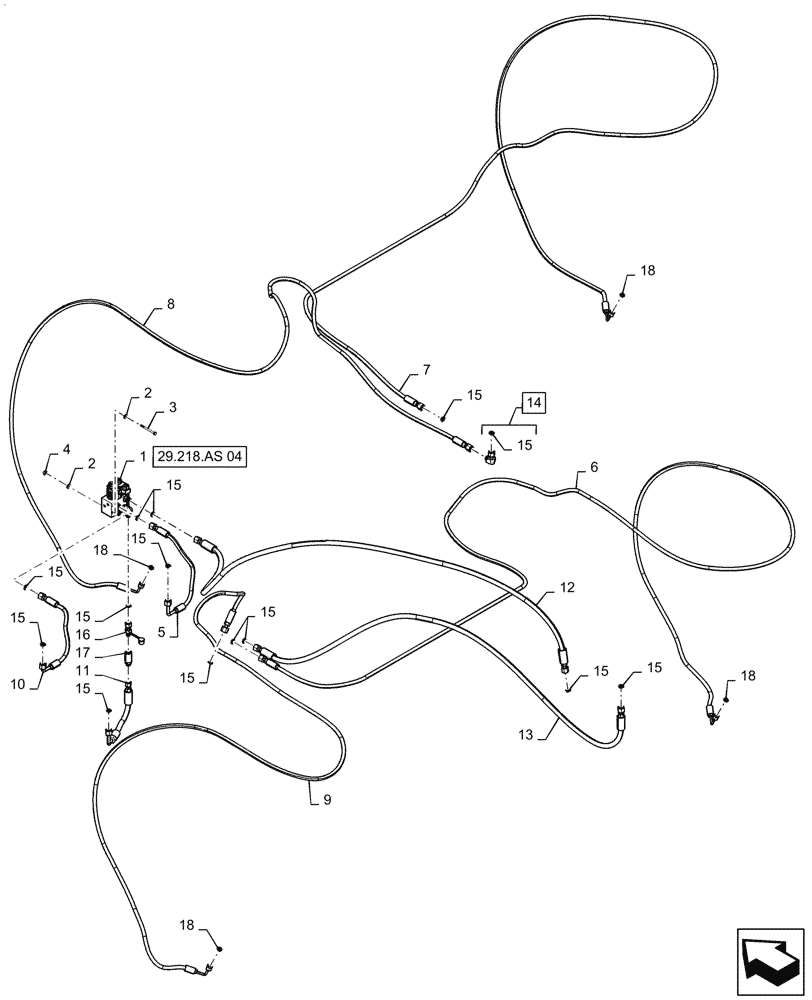

Схема запчастей Case IH PATRIOT 4440 - (29.218.AS[02.1]) - MOTOR CONTROL LINES, ASN YGT044000 (29) - HYDROSTATIC DRIVE
29.218.as 04
2
15
15
14
8
2
15
15
11
15
4
12
7
15
1
15
10
18
5
15
15
3
15
15
18
15
17
9
16
18
18
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47938377

VALVE

2 Bank with Fittings

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

3

86980368

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

5

47923835

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel 90° Elbow Long x 3/8" ID x 20" Long, Valve to Steel Lines

1шт.

6

47923955

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel 90° Elbow Long x 1/4" ID x 215 1/2" Long, Wheel Motor to Steel Lines

1шт.

7

47923837

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel 90° Elbow Long x 1/4" ID x 208" Long, Wheel Motor to Steel Lines

1шт.

8

47923957

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel 90° Elbow Long x 1/4" ID x 181" Long, Wheel Motor to Steel Lines

1шт.

9

47923526

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel 90° Elbow Long x 1/4" ID x 157" Long, Wheel Motor to Steel Lines

1шт.

10

47923531

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel 90° Elbow Short x 3/8" ID x 17" Long, Valve to Steel Lines

1шт.

11

47923532

HYDRAULIC HOSE

1/4" - 18 ORFS Fixed Straight x 11/16" - 18 ORFS Swivel 90° Elbow Long x 3/8" ID x 12" Long, Diagnostic Coupler to Steel Lines

1шт.

12

47923533

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Short Straight x 3/8" ID x 100" Long, Valve to RH Hydraulic Pump

1шт.

13

47923555

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16" - 16 ORFS Swivel Short Straight x 3/8" ID x 79 1/2" Long, Steel Line to RH Hydraulic Pump

1шт.

14

BN302443

FITTING

Elbow, 90° Swivel, Incl 15

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

13шт.

16

BN307993

NIPPLE, LUBE

Diagnostic, 3/8"

1шт.

17

BN307992

COUPLING

Diagnostic, 1/4-18 NPT

1шт.

18

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.
