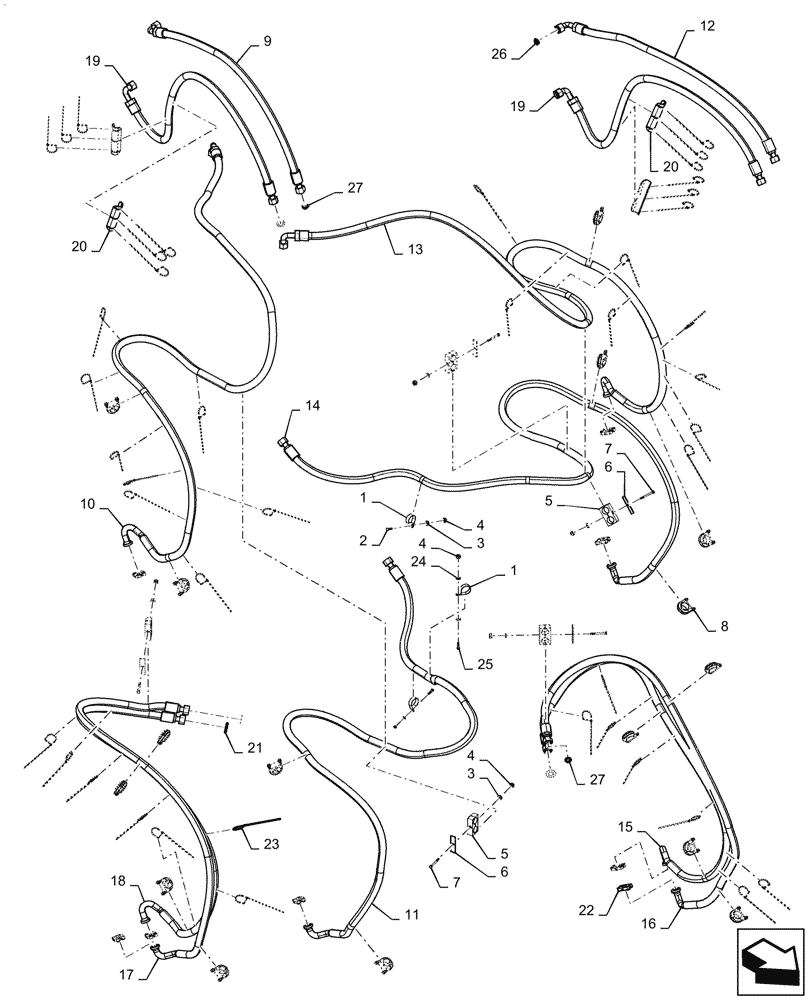

Запчасти Case IH PATRIOT 4440 (29.218.AS[01]) - DRIVE LINE HOSES, BSN YGT044001 (29) - HYDROSTATIC DRIVE

1

515-23508

CLAMP,2", Insul, 3/8" Bolt

3шт.

2

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

7шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

5

BN67495

CLAMP

Dual Hose, 1 - 1/2" OD Hose

5шт.

6

BN309850

PLATE

Dual Hose Clamp

5шт.

7

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

5шт.

8

BN320383

CLAMP

Assembly, 1 - 1/4" Hose, Incl 8 - 10

16шт.

9

84308035

HOSE ASSY.

1шт.

10

84307632

HOSE ASSY.,25.4mm ID x 4724mm L, SAE 100R13

1шт.

11

84307598

HOSE ASSY.,25.4mm ID x 4927mm L, SAE 100R13

1шт.

12

47637481

HOSE

1 - 7/16" - 12 ORFS Swivel x 1 - 7/16" - 12 ORFS Swivel Short Elbow x 1" ID x 65", Hydrostat to Steel Line

1шт.

13

47606016

HOSE

1 - 7/16" - 12 ORFS Swivel, 16 x 4825mm, RH Hydrostat to LH Rear Wheel Motor

1шт.

14

47568667

HYDRAULIC HOSE

1 - 7/16" -12 ORFS Swivel x 1" Flange Code 62, 1" ID x 194", RH Hydrostat to LH Rear Wheel Motor

1шт.

15

BN307796

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

16

BN307797

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

17

BN307798

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

18

BN307799

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

19

47940828

HYDRAULIC HOSE

25.4MM ID, 69.30IN L, SAE -16

2шт.

20

47629319

PROTECTIVE SLEEVE

Hose 8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

22

BN52315

KIT

1" Split Flange For Code 62 Fittings, Contains 1 Oring, 2 Flange Halves, and 4 Socket Head Bolts

8шт.

23

BN570007

STRAP

Black, Not Shown

42шт.

24

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

25

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

26

BN52317

O-RING

Incl 12

8шт.

27

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

8шт.
