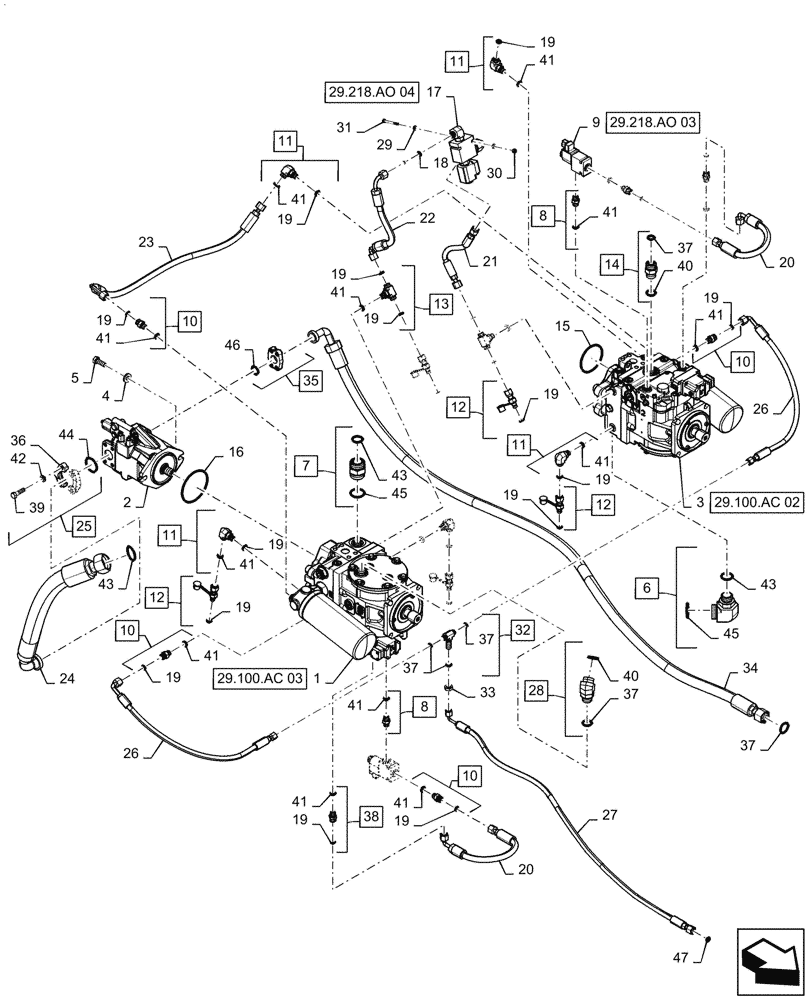

Запчасти Case IH PATRIOT 4440 (29.218.AO[02]) - HYDROSTATIC PUMP GROUP, ASN YGT044000 (29) - HYDROSTATIC DRIVE

1

84408213

HYDROSTATIC PUMP

RH, 90 Series, W/ 13 Tooth Coupler For Rear Mounted Pump

1шт.

See 29.100.AC 03 For Service

1шт.

1

84408213R

REMAN-HYD PUMP

RH, 90 Series, W/ 13 Tooth Coupler For Rear Mounted Pump

1шт.

1

84408213C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

BN316492

PUMP,28 CC

Pressure Compensated

1шт.

2

BN316492R

REMAN-HYD PUMP

Pressure Compensated

1шт.

2

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

84408212

HYDROSTATIC PUMP

LH, 90 Series, W/ 11 Tooth Coupler For Rear Mounted Pump

1шт.

See 29.100.AC 02 For Service

1шт.

3

84408212R

REMAN-HYD PUMP

LH, 90 Series, W/ 11 Tooth Coupler For Rear Mounted Pump

1шт.

3

84408212C

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4mm, DOR

2шт.

5

87342927

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

2шт.

6

BN302576

ELBOW

1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB, Incl 43, 45

1шт.

7

BN302659

FITTING

1 - 11/16" - 12 ORFS x 1 - 5/16" - 12 ORB, Incl 43, 45

1шт.

8

BN313038

FITTING

9/16" - 18 ORB x 9/16" - 18 ORB, Incl 41

2шт.

9

87544312

VALVE

Shunt

2шт.

See 29.202.AJ 04 For Service

1шт.

10

BN302646

FITTING

11/16" - 16 ORFS x 9/16" - 18 ORB, Incl 19, 41

5шт.

11

BN302553

ELBOW

11/16" - 16 ORFS x 9/16" - 18 ORB, Incl 19, 41

5шт.

12

BN307993

NIPPLE, LUBE

Nipple, Diagnostic, 11/16" - 16 ORFS, Incl 19

5шт.

13

BN302536

FITTING

Tee, 11/16" - 16 ORFS x 9/16" - 18, Incl 19, 41

2шт.

14

BN302655

FITTING

1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 37, 40

1шт.

15

14461081

O-RING,3.237" ID x 0.103" Width

Mounting Seal Between Gear Pump And LH Hydrostat

1шт.

16

87487840

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

Mounting Seal Between Pressure Compensated Pump And RH Hydrostat

1шт.

17

47955822

CONTROL VALVE

Traction Assist with Fittings

1шт.

See 29.202.AO 04 For Service

1шт.

18

87265840

ORIFICE

.075" - 6 Disc

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

22шт.

20

47923536

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Elbow x 11/16 - 16 Short Straight, 3/8" ID x 15" Long, From LH Pump to Shunt Valve

2шт.

21

47923538

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16 - 16 Short Straight, 1/4" ID x 10 1/2" Long, From LH Pump to Traction Assist Valve

1шт.

22

47923540

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Elbow x 11/16 - 16 Long Elbow, 1/4" ID x 13 1/2" Long, From RH Pump to Traction Assist Valve

1шт.

23

47923539

HYDRAULIC HOSE

11/16" - 16 ORFS Swivel Short Straight x 11/16 - 16 Long Elbow, 3/8" ID x 31 1/2" Long, From Filter Head to Filter Head

1шт.

24

343888A1

HOSE

1 - 11/16" - 12 ORFS Swivel Short Straight x 1 - 1/4" Code 61 Flange Short Elbow, 1 - 1/4" ID x 20", From Hyd Reservoir To Pressure Comp Pump

1шт.

25

BN316599

REPAIR KIT

Code 61, 1 - 1/4" Split Flange, Incl 36, 39, 42, 44

1шт.

26

47923541

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Straight x 11/16 - 16 Short Elbow, 1/4" ID x 24" Long, From Both Pumps to Tee

2шт.

27

47923542

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Straight x 11/16 - 16 Short Elbow, 1/4" ID x 62" Long, From Tee to Control Valve

1шт.

28

BN302639

ELBOW

45°, 1 - 3/16" - 12 ORFS x 1 - 1/16" - 12 ORB, Incl 37, 40

1шт.

29

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

30

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

31

86980367

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

32

47963432

UNION TEE

Bulkhead, 9/16" - 18, Incl 37

1шт.

33

47963423

NUT

Bulkhead, Lock

1шт.

34

47923549

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel Short Straight x Male Code 61 Flange Short Elbow, 3/4" ID x 88 3/8" Long, From Pressure Comp Pump to Control Valve

1шт.

35

BN316600

KIT

Code 61, 3/4" Split Flange, Incl 46

1шт.

36

70921117

FLANGE

Split

2шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

38

48004233

HYD CONNECTOR

11/16" - 16 ORFS x 9/16" - 18 ORB, Incl 19, 41

2шт.

39

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

Split Flange

4шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

41

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

14шт.

42

92-11044

SPRING WASHER,7/16"

Split Flange

4шт.

43

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

44

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Split Flange

1шт.

45

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

46

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

47

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
