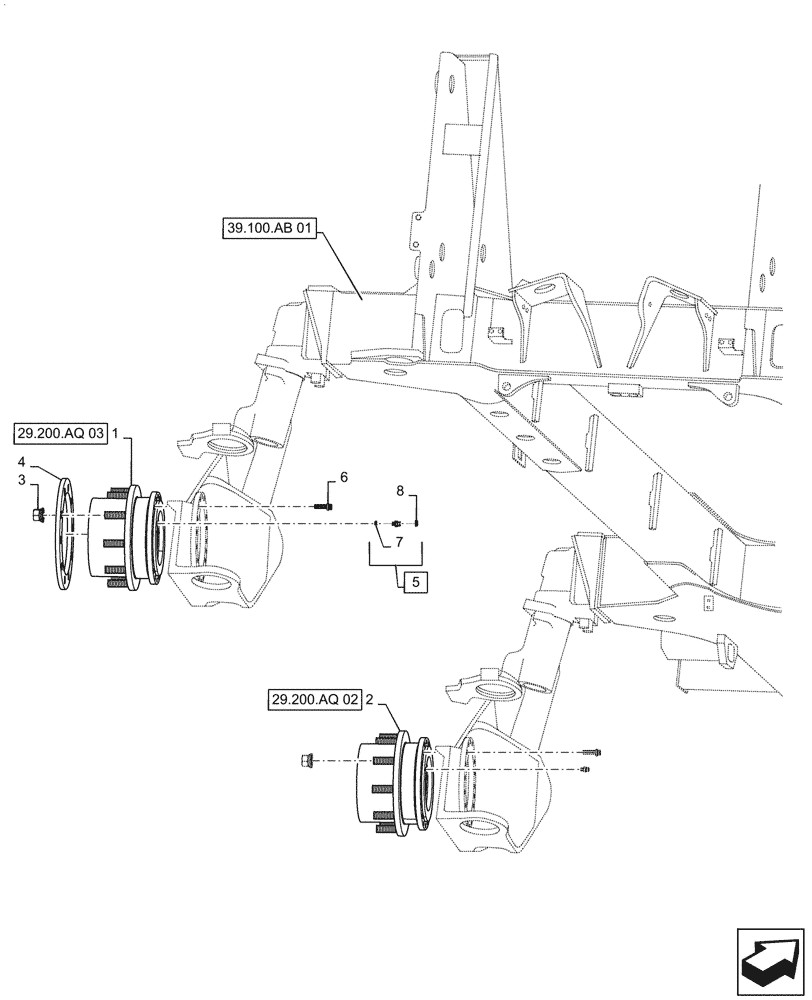

Запчасти Case IH PATRIOT 4440 (29.200.AQ[01]) - PLANETARY WHEEL HUB MOUNTING GROUP (29) - HYDROSTATIC DRIVE

1

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1, W/ Lip Seal Lobed Brake, Rear, Serial Range: -YGT044000

2шт.

1

84163263R

REMAN-WHEEL END ASSY

4430 TIER 4 (9/11-)

2шт.

1

84163263C

HUB

Return Number

1шт.

1

47982042

HUB

Planetary 28:1, W/ Lip Seal Lobed Brake, Rear, Start Serial: YGT044001

2шт.

2

84163261

HUB,Planetary

Planetary 21:1 W/ Lip Seal Lobed Brake, Front, Serial Range: -YGT044000

2шт.

2

47981802

HUB

Planetary 21:1 W/ Lip Seal Lobed Brake, Front, Start Serial: YGT044001

2шт.

3

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

4

BN306152

SPACER

Wheel Hub, Used On Rear Only

2шт.

5

BN305432

ADAPTER

9/16 - 18 x M12 x1.5, Park Brake Fitting, Incl 7, 8

4шт.

6

BN304226

BOLT

M16 - 2 x 45mm, Flange Head, CL 10.9

72шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Included with 5

4шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Included with 5

4шт.
