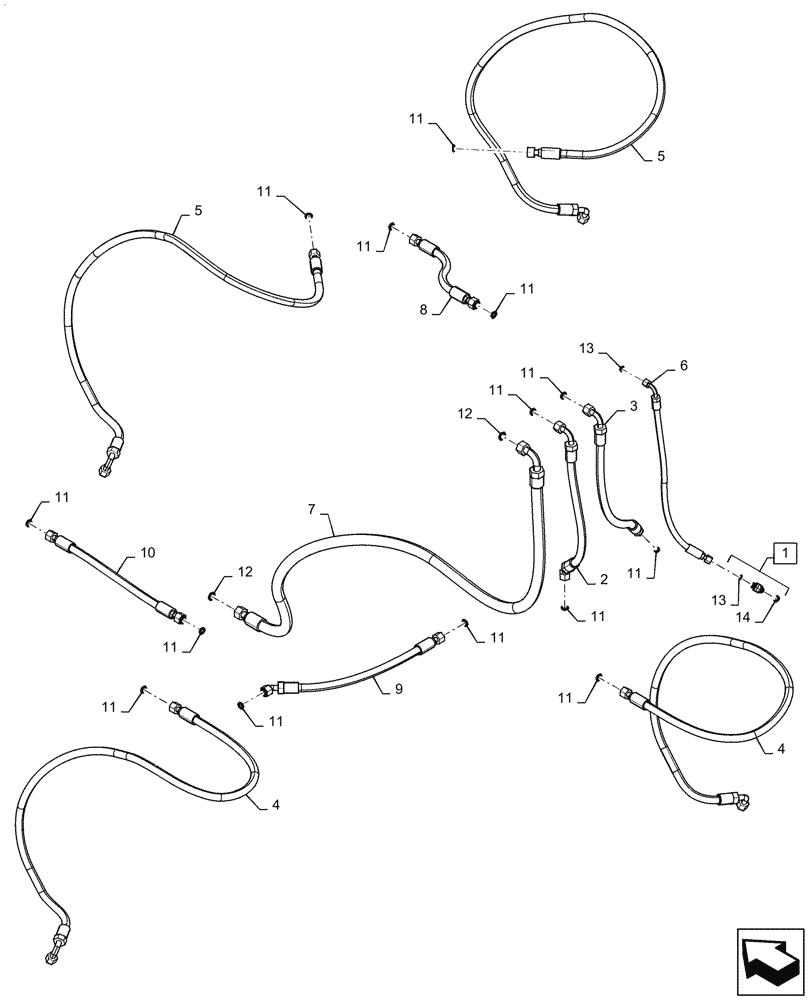

Запчасти Case IH PATRIOT 4440 (29.100.AO[01.1]) - CASE DRAIN LINES, ASN YGT044000 (29) - HYDROSTATIC DRIVE

1

47962886

ELBOW

45°, 13/16 - 16 ORFS x 3/4 -16 ORB, Incl 13, 14

1шт.

2

47923484

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel Medium Elbow x 1 3/16 - 12 ORFS Swivel 45° Short Elbow x 3/4" ID x 30" Long, LH Pump To Tank

1шт.

3

84311312

HOSE ASSY.

1 3/16 - 12 ORFS Swivel Medium Elbow x 1 3/16 - 12 ORFS Swivel x 3/4" ID x 35 1/4" Long, RH Pump To Tank

1шт.

4

47923486

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel Short Elbow x 1 3/16" - 12 ORFS Swivel Short Straight x 3/4" ID x 105 3/4" Long, Rear Wheel Motors to Steel Lines

2шт.

5

47923487

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel Short Elbow x 1 3/16 - 12 ORFS Swivel Short Straight x 3/4" ID x 108 1/2" Long, Front Wheel Motors to Steel Lines

2шт.

6

47923488

HYDRAULIC HOSE

13/16 - 16 ORFS Swivel Medium Elbow x 13/16" - 16 ORFS Swivel Short Straight x 1/2" ID x 32 1/2" Long, RH Pump To Tank

1шт.

7

47923489

HYDRAULIC HOSE

1 7/16 - 12 ORFS Swivel Short Elbow x 1 7/16 - 12 ORFS Swivel Short Straight x 1" ID x 94 7/8" Long, Steel Line To Tank

1шт.

8

48069869

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel Short Straight x 1 3/16" - 12 ORFS Swivel Short Straight x 3/4" ID x 22 3/4" Long, LH Steel Line to Front Crossover Steel Line

1шт.

9

47971710

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel 45° Short Elbow x 1 3/16 - 12 ORFS Swivel Short Straight x 3/4" ID x 28 1/2" Long, LH Drain Tube to RH Drain Tube, Rear

1шт.

10

47971709

HYDRAULIC HOSE

1 3/16 - 12 ORFS Swivel 45° Short Straight x 1 3/16 - 12 ORFS Swivel Short Straight x 3/4" ID x 25 1/4" Long, RH Steel Line to RH Drain Tube, Rear

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

19шт.

12

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

17

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

18

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

19

BN570007

STRAP

12-4.0 Band, Black Only

1шт.
