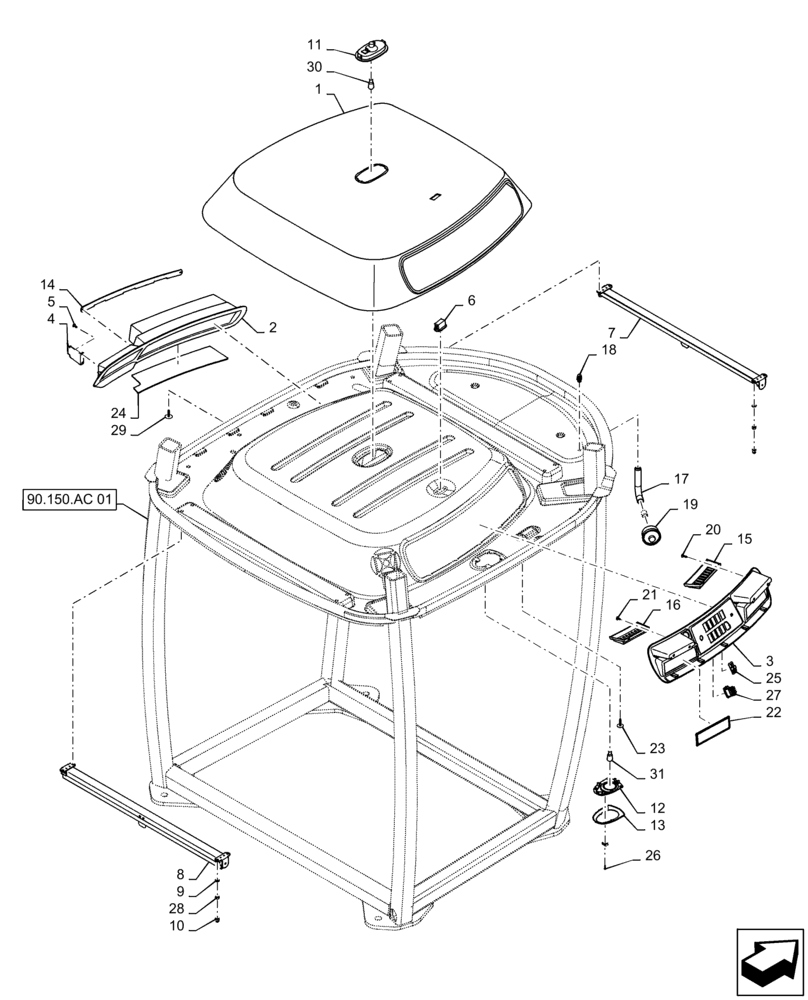

Запчасти Case IH PATRIOT 4440 (90.160.AX[01]) - CAB HEADLINER AND HEADLINER TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47695151

HEADLINER

Headliner

1шт.

2

84360595

BEZEL

LH, CIH

1шт.

3

84374477

DECAL

RH Bezel, CIH

1шт.

4

84259071

BRACKET

Bezel Mounting

1шт.

5

16083404

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M4 x 2.5 x 10mm, Hi-Lo

4шт.

6

84067961

CEILING LAMP

LED

1шт.

7

87450399

VISOR, SUN

Front

1шт.

8

87450400

VISOR, SUN

Rear

1шт.

9

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat, 6.6mm x 12mm x 1.6mm

8шт.

10

834-502

CROWN NUT,Crown, M6, Cl8

8шт.

11

87301983

INTERIOR LIGHT,12V, 10W

Courtesy

1шт.

12

372892A1

LAMP

Map

1шт.

13

360364A1

BEZEL

Map Light

1шт.

14

84360600

BAR

Bezel Insert

1шт.

15

84360598

INSERT

Storage

1шт.

16

84360599

INSERT

Storage

1шт.

17

437306A1

TUBE

Cab Pressure

1шт.

18

218-5104

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/2" - 20 Male ORB

1шт.

19

437304A1

GAUGE

Cab Pressure

1шт.

20

1975919C1

SELF-TAP SCREW

Truss HD With Washer

5шт.

21

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

22

1535219C1

COVER

Radio Opening

2шт.

23

333772A1

PLUG

Christmas Tree Clip

2шт.

24

84314231

INSERT

LH Bezel

1шт.

25

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

7шт.

26

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

4шт.

27

87442098

LIGHT SWITCH

Console

1шт.

28

829-1406

NUT,Hex, M6 x 1, Cl 10.9

8шт.

29

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Roof Trim Panel

7шт.

30

14149590

BULB,12V, 10W

Use On Ref 11

1шт.

31

373114A1

BULB

Use On Ref 12

1шт.
