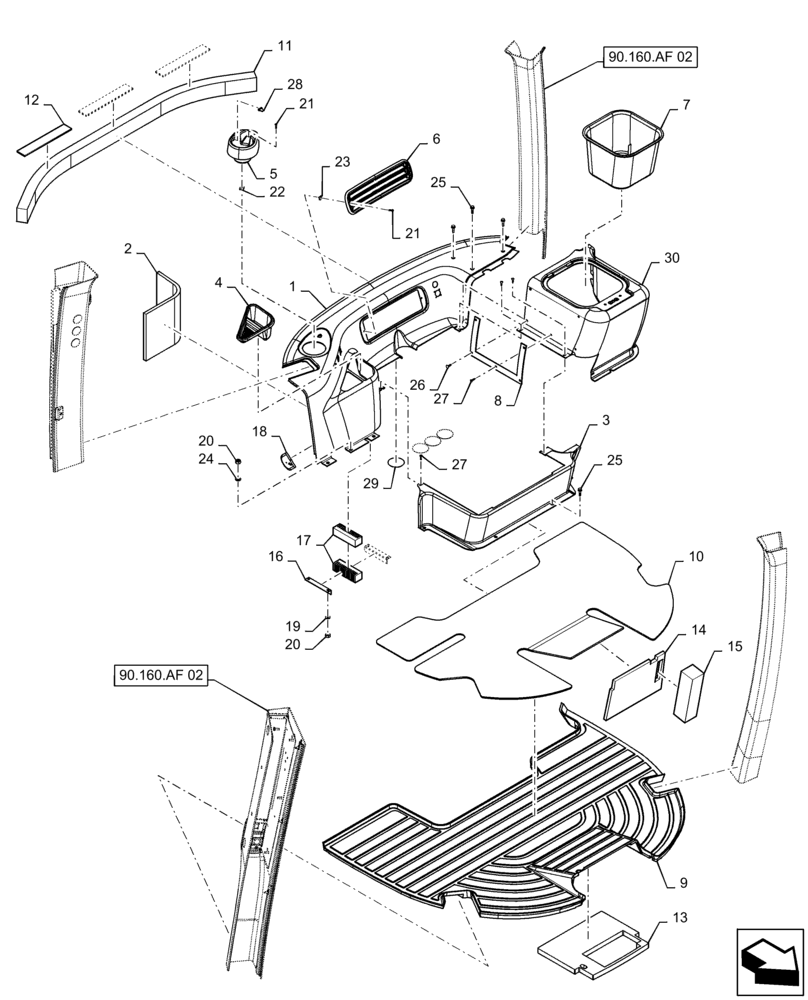

Запчасти Case IH PATRIOT 4440 (90.160.AF[01]) - INTERIOR TRIM, BASE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84249986

COVER

RH Rear

1шт.

2

84360854

FOAM INSULATION,264mm x 426mm x 16mm

Barrier

1шт.

3

84308033

COVER

Seat Kickplate

1шт.

4

84249993

TRAY

Storage

1шт.

5

84210915

HOLDER,Cup

Cup Holder, CIH

1шт.

6

84210917

TRIM PANEL

Louver, CIH

1шт.

7

119308A2

TRAY

Storage

1шт.

8

369937A1

NET

Cargo

1шт.

9

84288346

FLOOR MAT

Main

1шт.

10

394772A1

PAD SET

Floor Protection

1шт.

11

283094A1

FILTER

Cab Recirculation

1шт.

12

259461A1

FOAM

Rear ROPS

3шт.

13

381027A1

FOAM INSULATION

Acoustical

1шт.

14

384758A1

FOAM INSULATION

Barrior Front Console

1шт.

15

384786A2

FOAM

Front Console

1шт.

16

308579A1

BRACKET

Angle, Cable Clamp

2шт.

17

60-7021T1

FOAM

Cable Clamp

2шт.

18

84173606

GROMMET

Implement Access

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

11шт.

21

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

4шт.

22

177269A1

SPRING NUT,M4.2

1шт.

23

302862A1

SPRING NUT,4.2 Thread

4.2 Thread

2шт.

24

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

25

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

5шт.

26

84308891

FASTENER

Christmas Tree

2шт.

27

369929A1

FASTENER

Christmas Tree

7шт.

28

304061A1

BUMPER,Rubber

Rubber

4шт.

29

84353524

DECAL

Cover, No FOPS

4шт.

30

84308031

COVER

Electrical Area

1шт.
